391-020-521-103

Active

EDAC Inc.

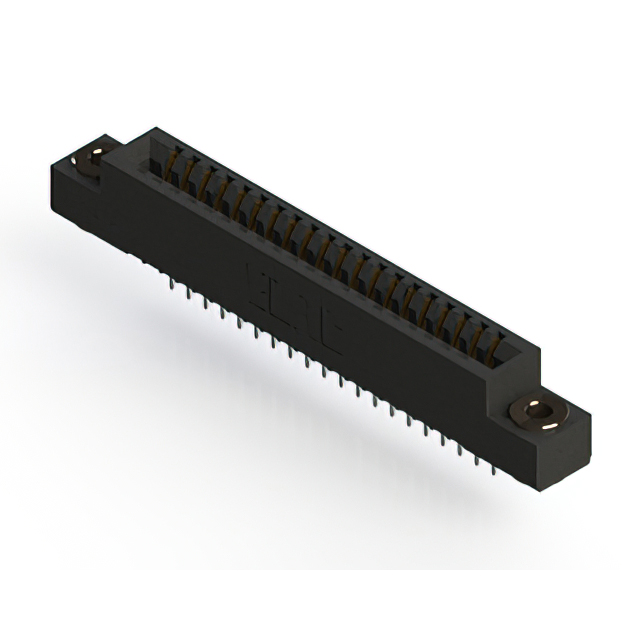

CARD EDGE CONNECTOR, 20 CONTACT(S), 1 ROW(S), FEMALE, STRAIGHT, 0.1 INCH PITCH, SOLDER TERMINAL, HOLE 0.116, BLACK INSULATOR,

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

391-020-521-103

Active

EDAC Inc.

CARD EDGE CONNECTOR, 20 CONTACT(S), 1 ROW(S), FEMALE, STRAIGHT, 0.1 INCH PITCH, SOLDER TERMINAL, HOLE 0.116, BLACK INSULATOR,

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	391-020-521-103

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Single Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Flange Feature	Floating Bobbin, Flush Mount
Flange Feature [diameter]	0.116 in
Flange Feature [diameter]	2.95 mm
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions	20
Number of Positions/Bay/Row [custom]	20
Number of Positions/Bay/Row [custom]	20
Number of Positions/Bay/Row [custom]	20
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Single
Termination	Solder
Termination Rows	1

391-020 Series

Part	Read Out	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Pitch [x]	Pitch [x]	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]	Number of Rows	Contact Material	Number of Positions	Contact Type	Color	Contact Finish Thickness	Contact Finish Thickness	Material - Insulation	Gender	Card Type	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Termination Rows	Termination	Contact Finish	Flange Feature [diameter]	Flange Feature [diameter]	Flange Feature	Number of Positions/Bay/Row [custom]	Features
EDAC Inc. 391-020-524-101	Single	1.37 mm	0.054 "	1.78 mm	0.07 in	2.54 mm	0.1 in	20	20	20	1	Copper Alloy	20	Semi Bellows	Black	10 Áin	0.25 Ám	Polyester Thermoplastic	Female	Non Specified - Single Edge	-40 °C	105 ░C	Through Hole	1	Solder	Gold
EDAC Inc. 391-020-520-202	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in	2.54 mm	0.1 in				2	Copper Alloy	20	Semi Bellows	Black	10 Áin	0.25 Ám	Polyester Thermoplastic	Female	Non Specified - Dual Edge	-40 °C	105 ░C	Through Hole	2	Solder	Gold	3.25 mm	0.128 "	Flush Mount Top Opening Unthreaded	10
EDAC Inc. 391-020-555-201	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in	2.54 mm	0.1 in				2	Copper Alloy	20	Semi Bellows	Black	10 Áin	0.25 Ám	Polyester Thermoplastic	Female	Non Specified - Dual Edge	-40 °C	105 ░C	Board Edge Straddle Mount	2	Solder Eyelet(s)	Gold				10	Card Extender
EDAC Inc. 391-020-521-103	Single	1.37 mm	0.054 "	1.78 mm	0.07 in	2.54 mm	0.1 in	20	20	20	1	Copper Alloy	20	Semi Bellows	Black	10 Áin	0.25 Ám	Polyester Thermoplastic	Female	Non Specified - Single Edge	-40 °C	105 ░C	Through Hole	1	Solder	Gold	2.95 mm	0.116 in	Floating Bobbin Flush Mount
EDAC Inc. 391-020-524-203	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in	2.54 mm	0.1 in				2	Copper Alloy	20	Semi Bellows	Black	10 Áin	0.25 Ám	Polyester Thermoplastic	Female	Non Specified - Dual Edge	-40 °C	105 ░C	Through Hole	2	Solder	Gold	2.95 mm	0.116 in	Floating Bobbin Flush Mount	10
EDAC Inc. 391-020-556-207	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in	2.54 mm	0.1 in				2	Copper Alloy	20	Semi Bellows	Black	10 Áin	0.25 Ám	Polyester Thermoplastic	Female	Non Specified - Dual Edge	-40 °C	105 ░C	Through Hole	2	Solder	Gold			Flush Mount M3 Threaded Insert Top Opening	10	Card Extender
EDAC Inc. 391-020-555-202	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in	2.54 mm	0.1 in				2	Copper Alloy	20	Semi Bellows	Black	10 Áin	0.25 Ám	Polyester Thermoplastic	Female	Non Specified - Dual Edge	-40 °C	105 ░C	Board Edge Straddle Mount	2	Solder Eyelet(s)	Gold	3.25 mm	0.128 "	Flush Mount Top Opening Unthreaded	10	Card Extender
EDAC Inc. 391-020-556-201	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in	2.54 mm	0.1 in				2	Copper Alloy	20	Semi Bellows	Black	10 Áin	0.25 Ám	Polyester Thermoplastic	Female	Non Specified - Dual Edge	-40 °C	105 ░C	Board Edge Straddle Mount	2	Solder	Gold				10	Card Extender
EDAC Inc. 391-020-524-204	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in	2.54 mm	0.1 in				2	Copper Alloy	20	Semi Bellows	Black	10 Áin	0.25 Ám	Polyester Thermoplastic	Female	Non Specified - Dual Edge	-40 °C	105 ░C	Through Hole	2	Solder	Gold	3.96 mm	0.156 in	Flush Mount Top Opening Unthreaded	10
EDAC Inc. 391-020-524-107	Single	1.37 mm	0.054 "	1.78 mm	0.07 in	2.54 mm	0.1 in	20	20	20	1	Copper Alloy	20	Semi Bellows	Black	10 Áin	0.25 Ám	Polyester Thermoplastic	Female	Non Specified - Single Edge	-40 °C	105 ░C	Through Hole	1	Solder	Gold			Flush Mount M3 Threaded Insert Top Opening

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 13.01
Newark	Each	1	$ 12.49
		100	$ 10.39
		250	$ 9.35
		500	$ 8.67
		1000	$ 7.28

Description

General part information

391-020 Series

20 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Black
