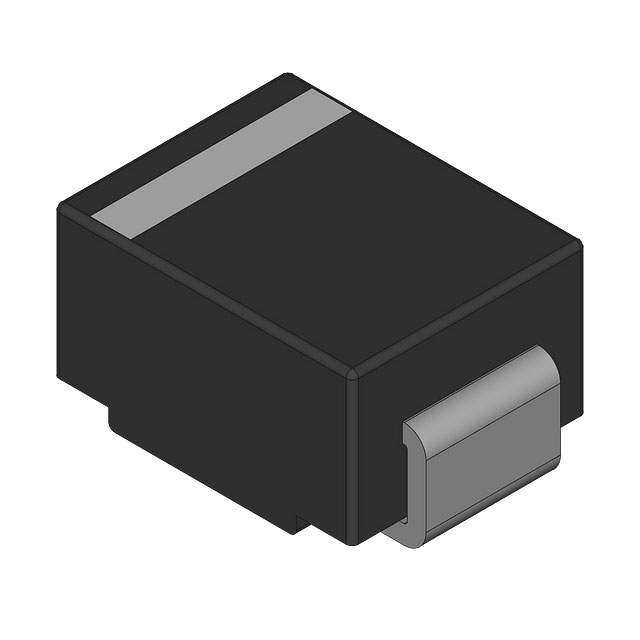

SZ1SMB5930BT3
ActiveON Semiconductor
DIODE ZENER 16V 3W SMB
SZ1SMB5930BT3
ActiveON Semiconductor
DIODE ZENER 16V 3W SMB
Description
General part information
SZ1SMB5930BT3
Zener Diode 16 V 3 W ±5% Surface Mount SMB
Technical Specifications
Parameters and characteristics for this part
| Specification | SZ1SMB5930BT3 |
|---|---|
| Current - Reverse Leakage | 1 µA |
| Grade | Automotive |
| Impedance (Max) (Zzt) | 10 Ohms |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 150 °C |
| Operating Temperature (Min) | -65 °C |
| Package / Case | SMB, DO-214AA |
| Package Name | SMB |
| Power - Max | 3 VA |
| Qualification | AEC-Q101 |
| Tolerance | 5 % |
| Voltage - Forward (Vf) (Max) | 1.5 V |
| Voltage - Zener (Nom) (Vz) | 16 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
