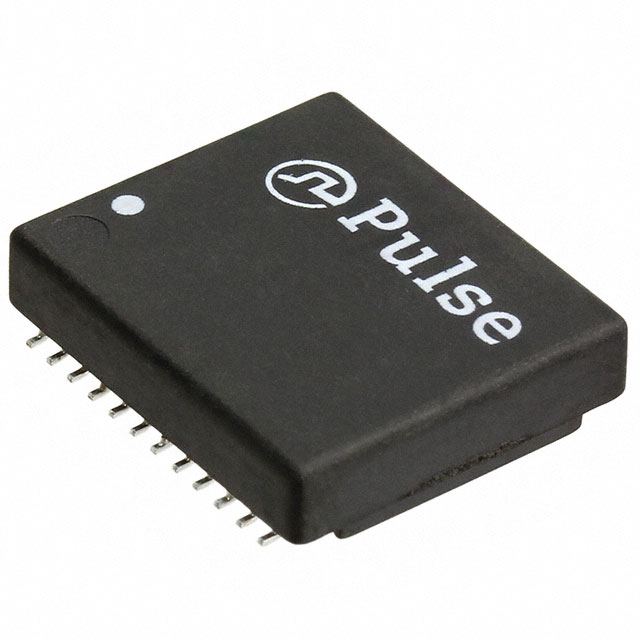

H5015FNLT
350µH LAN 10/100/1000 Base-T Pulse Transformer 1CT:1CT Transmitter, 1CT:1CT Receiver Surface Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | H5015FNLT |
|---|---|
| Height - Seated (Max) | 0.18 in |
| Inductance | 350 µH |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | 0 °C |
| Size / Dimension Length | 0.695 in |
| Size / Dimension Width | 0.596 in |
| Transformer Type | LAN 10, 1000 Base-T, 100 |
| Turns Ratio - Primary (Receiver) | 1 CT |
| Turns Ratio - Primary (Transmitter) | 1 CT |
| Turns Ratio - Secondary (Receiver) | 1 |
| Turns Ratio - Secondary (Transmitter) | 1 CT |
| Turns Ratio Mode | Receiver, Transmitter |
