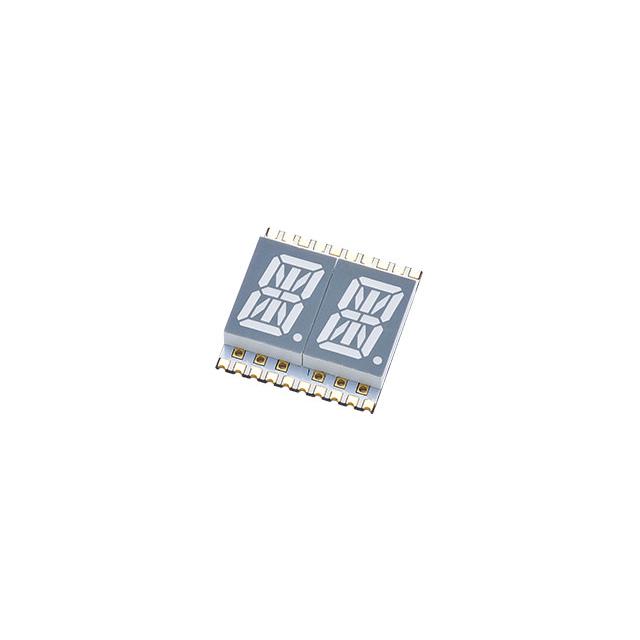

SDSCN40A2W

Active

ChromeLED

DISPLAY 14SEG 0.4" SGL AMBER 16S

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SDSCN40A2W

Active

ChromeLED

DISPLAY 14SEG 0.4" SGL AMBER 16S

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	1	$ 3.98

Description

General part information

SDSCN40 Series

Display Modules - LED Character and Numeric Amber 14-Segment, Alphanumeric 1 Character Common Cathode 2V 20mA 0.748" H x 0.366" W x 0.157" D (19.00mm x 9.30mm x 4.00mm) 16-SMD, No Lead

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SDSCN40A2W	SDSCN40 Series

Color	Amber	Red, Amber, Blue, Green
Common Pin	Common Cathode	Common Cathode
Current - Test	20 mA	20 mA
Digit/Alpha Size	10.16 mm	10.16 mm
Digit/Alpha Size [custom]	0.4 in	0.4 in
Display Type	14-Segment, Alphanumeric	14-Segment, Alphanumeric
Millicandela Rating	7 mcd	4 - 112 mcd
Number of Characters [custom]	1	1
Package / Case	16-SMD, No Lead	16-SMD, No Lead
Power Dissipation (Max) [Max]	70 mW	70 - 120 mW
Size / Dimension [x]	0.157 "	0.157 "
Size / Dimension [x]	4 mm	4 mm
Size / Dimension [y]	0.366 "	0.366 "
Size / Dimension [y]	9.3 mm	9.3 mm
Size / Dimension [z]	19 mm	19 mm
Size / Dimension [z]	0.748 "	0.748 "
Voltage - Forward (Vf) (Typ)	2 V	2 - 3.2 V
Wavelength - Peak	-	525 - 660 nm

SDSCN40 Series

DISPLAY 14SEG 0.4" SGL RED 16SMD

Part	Power Dissipation (Max) [Max]	Package / Case	Number of Characters [custom]	Digit/Alpha Size	Digit/Alpha Size [custom]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Common Pin	Color	Wavelength - Peak	Voltage - Forward (Vf) (Typ)	Millicandela Rating	Display Type	Current - Test
ChromeLED SDSCN40R2W	70 mW	16-SMD, No Lead	1	10.16 mm	0.4 in	19 mm	0.157 "	0.748 "	0.366 "	9.3 mm	4 mm	Common Cathode	Red	644 nm	2 V	7 mcd	14-Segment, Alphanumeric	20 mA
ChromeLED SDSCN40RR2W	70 mW	16-SMD, No Lead	1	10.16 mm	0.4 in	19 mm	0.157 "	0.748 "	0.366 "	9.3 mm	4 mm	Common Cathode	Red	660 nm	2 V	4 mcd	14-Segment, Alphanumeric	20 mA
ChromeLED SDSCN40A2W	70 mW	16-SMD, No Lead	1	10.16 mm	0.4 in	19 mm	0.157 "	0.748 "	0.366 "	9.3 mm	4 mm	Common Cathode	Amber		2 V	7 mcd	14-Segment, Alphanumeric	20 mA
ChromeLED SDSCN40B2W	120 mW	16-SMD, No Lead	1	10.16 mm	0.4 in	19 mm	0.157 "	0.748 "	0.366 "	9.3 mm	4 mm	Common Cathode	Blue		3.1 V	30 mcd	14-Segment, Alphanumeric	20 mA
ChromeLED SDSCN40GT2W	114 mW	16-SMD, No Lead	1	10.16 mm	0.4 in	19 mm	0.157 "	0.748 "	0.366 "	9.3 mm	4 mm	Common Cathode	Green	525 nm	3.2 V	112 mcd	14-Segment, Alphanumeric	20 mA
