1-1825059-9

Active

TE Connectivity Raychem Cable Protection

SWITCH STANDARD DIP SPST

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

SWITCH STANDARD DIP SPST

Technical Specifications

Parameters and characteristics for this part

Part	Pitch [x]	Pitch	Pitch [x]	Actuator Type	Mechanical Life	Length	Length	Electrical Life	Height Above Board [z]	Height Above Board [z]	Features	Current Rating (Amps)	Termination Style	Actuator Level	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Contact Material	Mounting Type	Number of Positions	Body Material	Circuit	Contact Finish	Height Above Board	Height Above Board
TE Connectivity Raychem Cable Protection 1-1825002-8	0.1 in	Full	2.54 mm	Slide (Standard)	1000 Cycles	1.078 "	27.38 mm	1000 Cycles	0.189 in	4.8 mm	Tape Seal	25 mA	PC Pin	Flush Recessed	-30 ░C	85 °C	24 VDC	Copper Alloy	Through Hole	10	Polyphenylene Sulfide (PPS)	SPST	Gold
TE Connectivity Raychem Cable Protection 1-1825059-5				Standard										Flush Recessed					Surface Mount	4		SPST
TE Connectivity Raychem Cable Protection 5-1825059-3				Standard										Flush Recessed					Surface Mount	10		SPST
TE Connectivity Raychem Cable Protection 2-1825059-3	0.1 in	Full	2.54 mm	Slide (Standard)	1000 Cycles	0.578 "	14.68 mm	1000 Cycles			Tape Seal	25 mA	Gull Wing	Flush Recessed	-30 ░C	85 °C	24 VDC	Copper Alloy	Surface Mount		Polyphenylene Sulfide (PPS)	SPST	Gold	0.177 in	4.5 mm
TE Connectivity Raychem Cable Protection 1-1825059-9				Standard										Flush Recessed					Surface Mount			SPST
TE Connectivity Raychem Cable Protection 1-1825059-4				Standard										Flush Recessed					Surface Mount	4		SPST
TE Connectivity Raychem Cable Protection 1-1825059-7	0.1 in	Full	2.54 mm	Slide (Standard)	1000 Cycles			1000 Cycles			Tape Seal	25 mA	Gull Wing	Flush Recessed	-30 ░C	85 °C	24 VDC	Copper Alloy	Surface Mount	4	Polyphenylene Sulfide (PPS)	SPST	Gold	0.177 in	4.5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	9000	$ 0.72

General part information

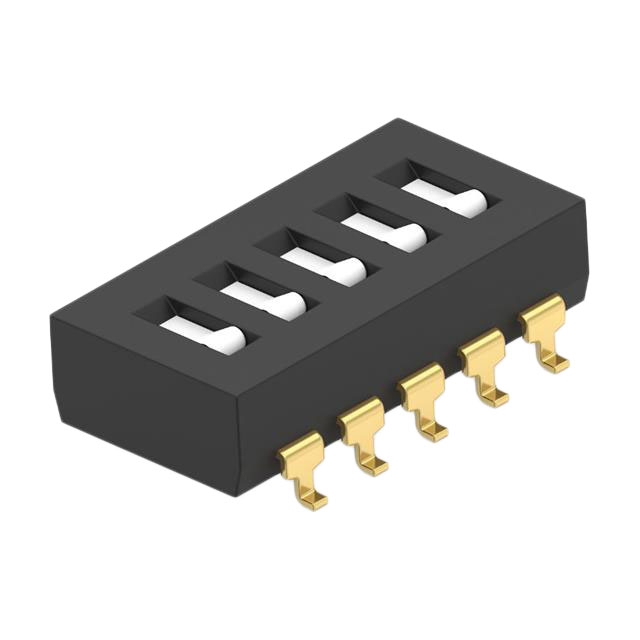

Dip Switch SPST 5 Position Surface Mount Standard Actuator
