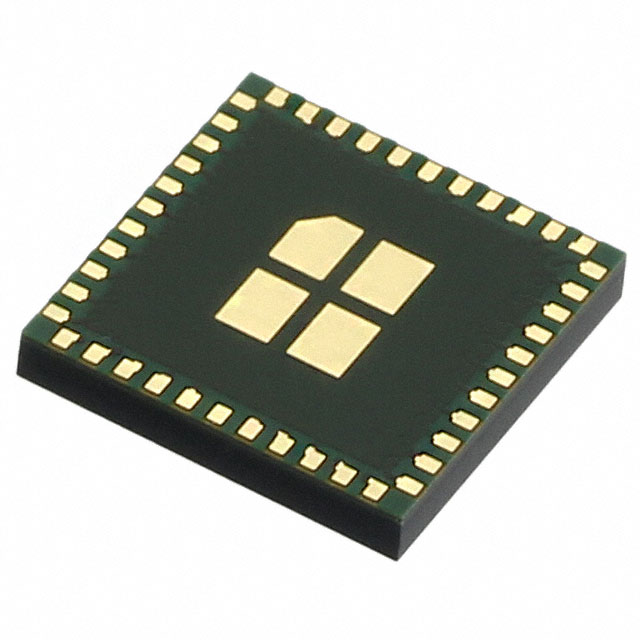

HDG204-DN-3

Active

H&D Wireless AB

IC RF TXRX WIFI 44TQFN

Search across all available documentation for this part.

Active

H&D Wireless AB

IC RF TXRX WIFI 44TQFN

Technical Specifications

Parameters and characteristics for this part

Specification	HDG204-DN-3

Current - Receiving	60 mA
Current - Transmitting	15 mA
Data Rate (Max) [Max]	54 Mbps
Frequency [Max]	2.5 GHz
Frequency [Min]	2.4 GHz
GPIO	2
Modulation	DQPSK, CCK, BPSK, 64QAM, 16QAM, DBPSK, OFDM
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	44-TQFN Exposed Pad Module
Power - Output	18 dBm
Protocol	802.11b/g
RF Family/Standard	WiFi
Serial Interfaces	SPI
Supplier Device Package	44-QFN SIP (8x8)
Type	TxRx Only
Voltage - Supply	3.3 V

Part	GPIO	Type	Package / Case	RF Family/Standard	Serial Interfaces	Data Rate (Max) [Max]	Protocol	Modulation	Supplier Device Package	Power - Output	Current - Transmitting	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Current - Receiving	Frequency [Max]	Frequency [Min]	Voltage - Supply
H&D Wireless AB HDG204-DN-3	2	TxRx Only	44-TQFN Exposed Pad Module	WiFi	SPI	54 Mbps	802.11b/g	16QAM 64QAM BPSK CCK DBPSK DQPSK OFDM	44-QFN SIP (8x8)	18 dBm	15 mA	85 °C	-40 °C	Surface Mount	60 mA	2.5 GHz	2.4 GHz	3.3 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

IC RF TxRx Only WiFi 802.11b/g 2.4GHz ~ 2.5GHz 44-TQFN Exposed Pad Module
