T4010008031-000
ActiveTE Connectivity AMP Connectors

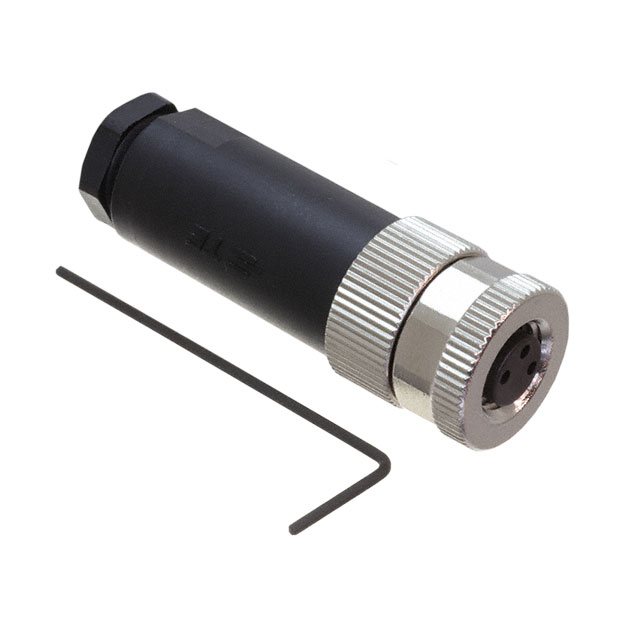

CONN RCPT FMALE 3POS GOLD SCREW
Deep-Dive with AI
Search across all available documentation for this part.
T4010008031-000
ActiveTE Connectivity AMP Connectors
CONN RCPT FMALE 3POS GOLD SCREW
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | T4010008031-000 |
|---|---|
| Applications | Telecommunications, Automation Control, Industrial |
| Color | Silver |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 3 µin |
| Contact Finish Thickness - Mating | 0.076 µm |
| Current Rating (Amps) | 3 A |
| Features | Coupling Nut, Backshell |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Brass |
| Shell Size - Insert | M8-3 |
| Termination | Screw |
| Voltage Rating | 60 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 10.81 | |
| 10 | $ 9.77 | |||
| 25 | $ 9.52 | |||
| 50 | $ 9.15 | |||
| 100 | $ 8.48 | |||
| 250 | $ 8.43 | |||
| 500 | $ 8.12 | |||
| 1000 | $ 7.24 | |||
T40100 Series
CONN RCPT FMALE 3POS GOLD SCREW
| Part | Voltage Rating | Primary Material | Features | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Connector Type | Shell Size - Insert | Ingress Protection | Color | Mounting Type | Applications | Shell Material | Contact Finish - Mating | Operating Temperature [Max] | Operating Temperature [Min] | Current Rating (Amps) | Termination | Shell Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors T4010008031-000 | 60 VDC | Metal | Backshell, Coupling Nut | 3 µin | 0.076 µm | Receptacle, Female Sockets | M8-3 | IP67 - Dust Tight, Waterproof | Silver | Free Hanging (In-Line) | Automation Control, Industrial, Telecommunications | Brass | Gold | 85 °C | -40 °C | 3 A | Screw | Nickel |
Description
General part information
T40100 Series
3 Position Circular Connector Receptacle, Female Sockets Screw
