ACPDQC5V0ESPC-HF

Active

Comchip Technology

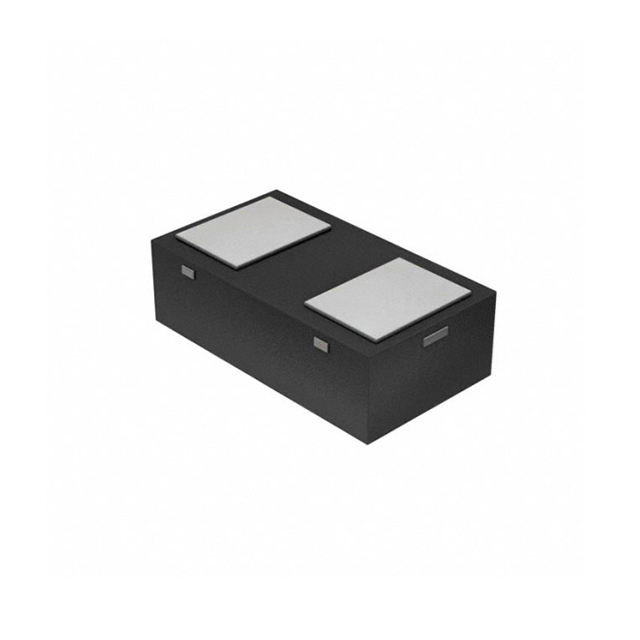

TVS DIODE 5VWM 35V 0402C/SOD923F

Search across all available documentation for this part.

Active

Comchip Technology

TVS DIODE 5VWM 35V 0402C/SOD923F

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ACPDQC5V0ESPC-HF	ACPDQC5 Series

Bidirectional Channels [custom]	1	1
Capacitance @ Frequency	0.28 pF	0.15 - 130 pF
Current - Peak Pulse (10/1000µs)	4 A	2.5 - 15 A
Grade	Automotive	Automotive
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	125 ¯C	125 - 150 °C
Operating Temperature [Min]	-40 °C	-55 - -40 °C
Package / Case	0402 (1006 Metric)	SOD-923, 0402 (1006 Metric)
Power - Peak Pulse	100 W	38 - 180 W
Power Line Protection	False	False
Qualification	AEC-Q101	AEC-Q101
Supplier Device Package	0402C, SOD-923F	0402C, SOD-923F
Type	Zener	Zener
Unidirectional Channels	-	1
Voltage - Breakdown (Min) [Min]	7 V	5.1 - 7 V
Voltage - Clamping (Max) @ Ipp	35 V	12 - 35 V
Voltage - Clamping (Max) @ Ipp	-	15 - 20 V
Voltage - Reverse Standoff (Typ)	5 V	5 V

ESD SUPPRESSOR DIODE TVS UNI-DIR 5V 20VC AUTOMOTIVE AEC-Q101 2-PIN SOD-923F T/R

Part	Current - Peak Pulse (10/1000µs)	Type	Unidirectional Channels [custom]	Capacitance @ Frequency	Grade	Voltage - Reverse Standoff (Typ)	Package / Case	Mounting Type	Voltage - Clamping (Max) @ Ipp [Max]	Qualification	Power - Peak Pulse	Voltage - Breakdown (Min) [Min]	Supplier Device Package	Bidirectional Channels [custom]	Voltage - Clamping (Max) @ Ipp	Operating Temperature [Max]	Operating Temperature [Min]
Comchip Technology ACPDQC5V0USP-HF	2.5 A	Zener	1	0.6 pF	Automotive	5 V	SOD-923	Surface Mount	20 V	AEC-Q101	50 W	5.4 V	0402C, SOD-923F
Comchip Technology ACPDQC5V0R-HF	11 A	Zener		24 pF	Automotive	5 V	0402 (1006 Metric)	Surface Mount		AEC-Q101		5.6 V	0402C, SOD-923F	1	12 V	150 °C	-40 °C
Comchip Technology ACPDQC5V0U-HF	15 A	Zener	1	130 pF	Automotive	5 V	SOD-923	Surface Mount		AEC-Q101	180 W	6 V	0402C, SOD-923F		12 V
Comchip Technology ACPDQC5V0-HF	5 A	Zener			Automotive	5 V	SOD-923	Surface Mount	15 V	AEC-Q101	75 W	5.1 V	0402C, SOD-923F	1
Comchip Technology ACPDQC5V0CSP-IPHF		Zener		0.15 pF	Automotive	5 V	0402 (1006 Metric)	Surface Mount	19 V	AEC-Q101	38 W	7 V	0402C, SOD-923F	1		150 °C	-55 °C
Comchip Technology ACPDQC5V0ESPC-HF	4 A	Zener		0.28 pF	Automotive	5 V	0402 (1006 Metric)	Surface Mount		AEC-Q101	100 W	7 V	0402C, SOD-923F	1	35 V	125 ¯C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

35V (Typ) Clamp 4A (8/20µs) Ipp Tvs Diode Surface Mount 0402C/SOD-923F
