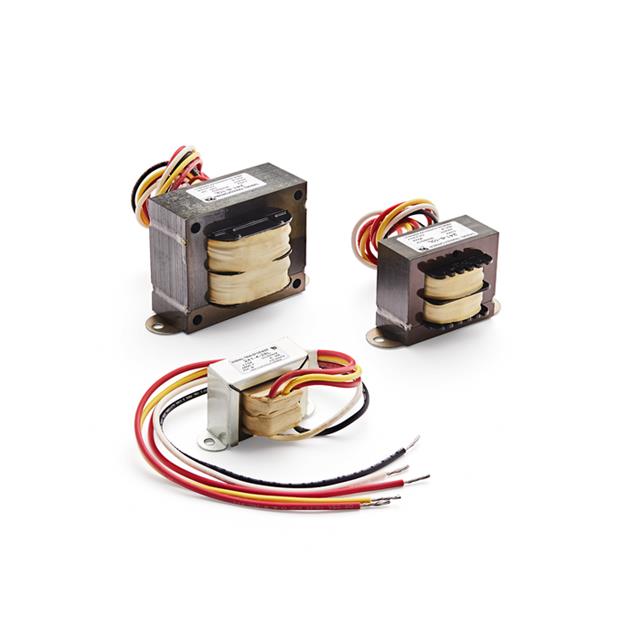

DP-241-6-24L

Active

Signal Transformer

POWER TRANSFORMERS 50\60 HZ, LAMINATED TRANSFORMER

Search across all available documentation for this part.

Active

Signal Transformer

POWER TRANSFORMERS 50\60 HZ, LAMINATED TRANSFORMER

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	DP-241-6-24L	241 Series

Center Tap	True	True
Current - Output (Max) [Max]	1.25 A	1.2 - 5 A
Height - Seated (Max)	-	57.8 mm
Height - Seated (Max) [Max] [z]	49.8 mm	42.8 - 67.7 mm
Mounting Type	Chassis Mount	Chassis Mount
Power - Max [Max]	30 VA	12 - 100 VA
Primary Winding(s)	Dual	Single, Dual
Secondary Winding(s)	Single	Single
Size / Dimension	-	36.3 - 58.5 mm
Size / Dimension	-	71.4 - 102.4 mm
Termination Style	Wire Leads	Wire Leads, Solder, Quick Connect
Type	Laminated Core	Laminated Core
Voltage - Isolation	2500 Vrms	2500 Vrms
Voltage - Primary	115 V, 230 V	115 - 230 V
Voltage - Secondary (Full Load)	24 V	10 - 28 V
Weight	1.1 lbs	0.7 - 2.8 lbs
Weight	499 g	1.3 - 771.1 kg

Power Transformers 50\60 Hz, Laminated Transformer

Part	Height - Seated (Max) [Max] [z]	Mounting Type	Primary Winding(s)	Current - Output (Max) [Max]	Size / Dimension [y]	Size / Dimension [x]	Voltage - Secondary (Full Load)	Voltage - Primary	Weight	Weight	Power - Max [Max]	Voltage - Isolation	Secondary Winding(s)	Termination Style	Type	Height - Seated (Max) [Max]
Signal Transformer 241-8-20L	67.7 mm	Chassis Mount	Single	5 A	58.5 mm	102.4 mm	20 V	115 V	2.8 lbs	1.3 kg	100 VA	2500 Vrms	Single	Wire Leads	Laminated Core
Signal Transformer DP-241-5-10	42.8 mm	Chassis Mount	Dual	1.2 A	36.3 mm	71.4 mm	10 V	115 V, 230 V	0.7 lb	317.51 g	12 VA	2500 Vrms	Single	Quick Connect, Solder	Laminated Core
Signal Transformer DP-241-6-24L	49.8 mm	Chassis Mount	Dual	1.25 A			24 V	115 V, 230 V	1.1 lbs	499 g	30 VA	2500 Vrms	Single	Wire Leads	Laminated Core
Signal Transformer DP-241-6-28L	49.8 mm	Chassis Mount	Dual				28 V	115 V, 230 V	1.1 lbs	499 g	30 VA	2500 Vrms	Single	Wire Leads	Laminated Core
Signal Transformer 241-7-12L		Chassis Mount	Single	4 A	49.2 mm	93.7 mm	12.6 V	115 V	1.7 lbs	771.1 g	56 VA	2500 Vrms	Single	Wire Leads	Laminated Core	57.8 mm
Signal Transformer 241-6-10	49.8 mm	Chassis Mount	Single	3 A			10 V	115 V	1.1 lbs	499 g	30 VA	2500 Vrms	Single	Quick Connect, Solder	Laminated Core

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Transformers 50\60 Hz, Laminated Transformer
