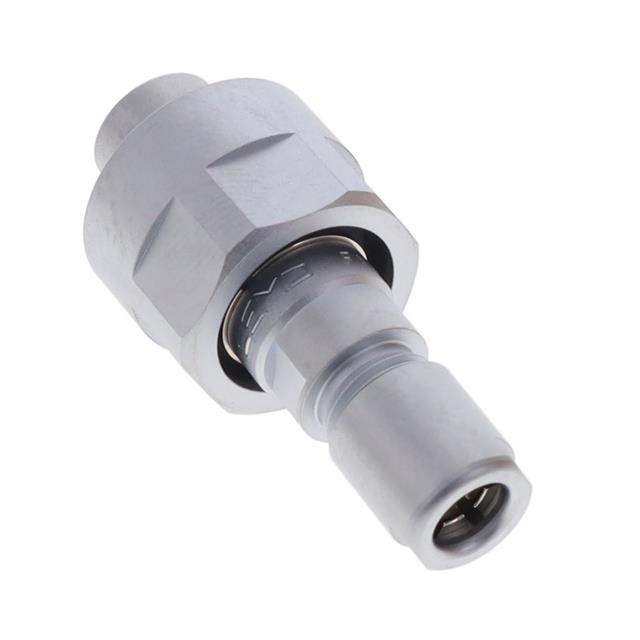

FVN.0V.304.CLAC35
ActiveLEMO
CIRCULAR CONNECTORS & CABLE CONNECTORS ROHS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | FVN.0V.304.CLAC35 | FVN.0V Series |
|---|---|---|
| Backshell Material, Plating | Brass, Chrome | Brass, Chrome |
| Cable Opening | - | 0.126 in |
| Cable Opening | - | 4.2 mm |
| Cable Opening | - | 0.165 in |
| Cable Opening | - | 3.2 mm |
| Color | Silver | Silver |
| Connector Type | Male Pins, Plug, Female Sockets | Male Pins, Plug, Female Sockets |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish Thickness - Mating | 1 µm | 1 µm |
| Contact Finish Thickness - Mating | 39.4 µin | 39.4 µin |
| Contact Material | Brass | Brass |
| Current Rating (Amps) | 7 A | 7 A |
| Features | Coupling Nut, Backshell | Coupling Nut, Backshell |
| Ingress Protection | IP68 - Dust Tight, Waterproof | IP68 - Dust Tight, Waterproof |
| Insert Material | Polyetheretherketone (PEEK) | Polyetheretherketone (PEEK) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Positions | 4 | 4 |
| Operating Temperature [Max] | 200 °C | 200 °C |
| Operating Temperature [Min] | -20 C | -20 C |
| Orientation | Keyed | Keyed |
| Primary Material | Metal | Metal |
| Shell Finish | Chrome | Chrome |
| Shell Material | Brass | Brass |
| Shell Size - Insert | 304 | 304 |
| Shielding | Shielded | Shielded |
FVN.0V Series
CONN CIRC PLUG 4P GOLD SLDR CUP
| Part | Current Rating (Amps) | Shell Material | Contact Finish - Mating | Shielding | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] | Cable Opening [Max] [custom] | Cable Opening [Min] [custom] | Insert Material | Features | Shell Finish | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Ingress Protection | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Shell Size - Insert | Connector Type | Orientation | Backshell Material, Plating | Primary Material | Color | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
7 A | Brass | Gold | Shielded | 0.126 in | 4.2 mm | 0.165 in | 3.2 mm | Polyetheretherketone (PEEK) | Backshell, Coupling Nut | Chrome | Free Hanging (In-Line) | -20 C | 200 °C | Brass | IP68 - Dust Tight, Waterproof | 1 µm | 39.4 µin | 304 | Female Sockets, Male Pins, Plug | Keyed | Brass, Chrome | Metal | Silver | 4 | |
7 A | Brass | Gold | Shielded | Polyetheretherketone (PEEK) | Backshell, Coupling Nut | Chrome | Free Hanging (In-Line) | -20 C | 200 °C | Brass | IP68 - Dust Tight, Waterproof | 1 µm | 39.4 µin | 304 | Female Sockets, Male Pins, Plug | Keyed | Brass, Chrome | Metal | Silver | 4 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
FVN.0V Series
4 Position Circular Connector Plug, Female Sockets and Male Pins Solder Cup
