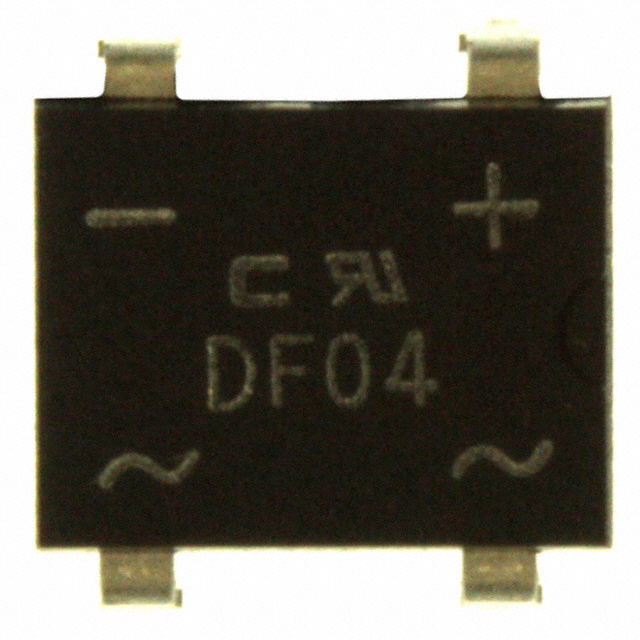

DF04-G

Active

Comchip Technology

BRIDGE RECT 1PHASE 400V 1A 4-DF

Search across all available documentation for this part.

Active

Comchip Technology

BRIDGE RECT 1PHASE 400V 1A 4-DF

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	DF04-G	DF04 Series

Current - Average Rectified (Io)	1 A	1 A
Current - Reverse Leakage @ Vr	10 µA	10 µA
Diode Type	Single Phase	Single Phase
Mounting Type	Through Hole	Surface Mount, Through Hole
Operating Temperature [Max]	150 °C	150 °C
Operating Temperature [Min]	-55 °C	-55 °C
Package / Case	4-EDIP	4-SMD, Gull Wing, 4-EDIP
Package / Case	0.321 in	0.321 in
Package / Case	8.15 mm	8.15 mm
Supplier Device Package	4-DF	DFS, 4-DF
Technology	Standard	Standard
Voltage - Forward (Vf) (Max) @ If	1.1 V	1.1 V
Voltage - Peak Reverse (Max) [Max]	400 V	400 V

BRIDGE RECT 1PHASE 400V 1A DFS

Part	Current - Average Rectified (Io)	Package / Case	Current - Reverse Leakage @ Vr	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Peak Reverse (Max) [Max]	Technology	Voltage - Forward (Vf) (Max) @ If	Diode Type	Supplier Device Package	Package / Case	Package / Case
Comchip Technology DF04ST-HF	1 A	4-SMD, Gull Wing	10 µA	Surface Mount	-55 °C	150 °C	400 V	Standard	1.1 V	Single Phase	DFS
Comchip Technology DF04ST-G	1 A	4-SMD, Gull Wing	10 µA	Surface Mount	-55 °C	150 °C	400 V	Standard	1.1 V	Single Phase	DFS
Comchip Technology DF04S-HF	1 A	4-SMD, Gull Wing	10 µA	Surface Mount	-55 °C	150 °C	400 V	Standard	1.1 V	Single Phase	DFS
Comchip Technology DF04-G	1 A	4-EDIP	10 µA	Through Hole	-55 °C	150 °C	400 V	Standard	1.1 V	Single Phase	4-DF	0.321 in	8.15 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Bridge Rectifier Single Phase Standard 400 V Through Hole 4-DF
