Technical Specifications
Parameters and characteristics for this part
| Specification | S5KP5M-13 |
|---|---|
| Capacitance @ Vr, F | 50 pF |
| Current - Average Rectified (Io) | 5 A |
| Current - Reverse Leakage @ Vr | 10 µA |
| Grade | Automotive |
| Mounting Type | Surface Mount |
| Operating Temperature - Junction [Max] | 150 °C |
| Operating Temperature - Junction [Min] | -55 °C |

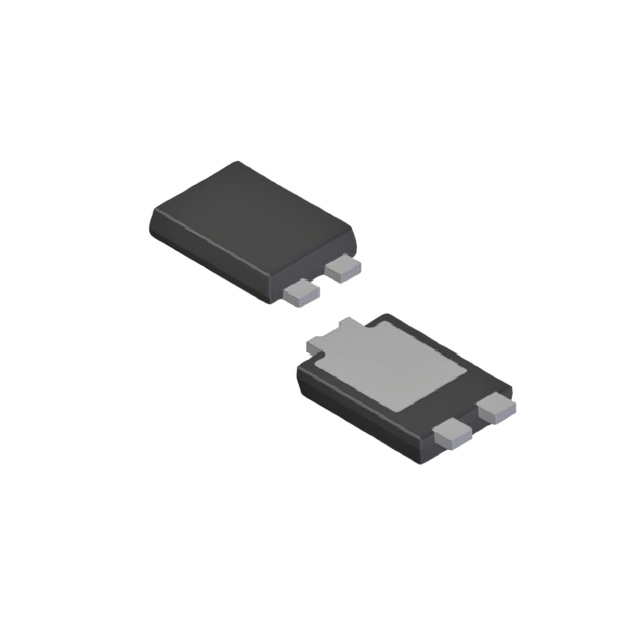

| Package / Case | PowerDI™ 5 |
| Qualification | AEC-Q101 |
| Reverse Recovery Time (trr) | 3 çs |
| Speed | Standard Recovery >500ns |
| Speed | 200 mA |
| Supplier Device Package | PowerDI™ 5 |
| Technology | Standard |
| Voltage - DC Reverse (Vr) (Max) [Max] | 800 V |
| Voltage - Forward (Vf) (Max) @ If | 990 mV |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.83 | |
| 10 | $ 0.72 | |||
| 100 | $ 0.50 | |||
| 500 | $ 0.41 | |||
| 1000 | $ 0.35 | |||
| 2000 | $ 0.31 | |||
| Digi-Reel® | 1 | $ 0.83 | ||
| 10 | $ 0.72 | |||
| 100 | $ 0.50 | |||
| 500 | $ 0.41 | |||
| 1000 | $ 0.35 | |||
| 2000 | $ 0.31 | |||
| Tape & Reel (TR) | 5000 | $ 0.30 | ||
| 10000 | $ 0.28 | |||
Description
General part information
S5KP5M Series
The DIODES™ S5KP5M is a 5.0A glass-passivated rectifier in the PowerDI®5 package and offers high-surge current capability and low-leakage current. The S5KP5M is a lead-free finish, RoHS compliant, "Green" device.
