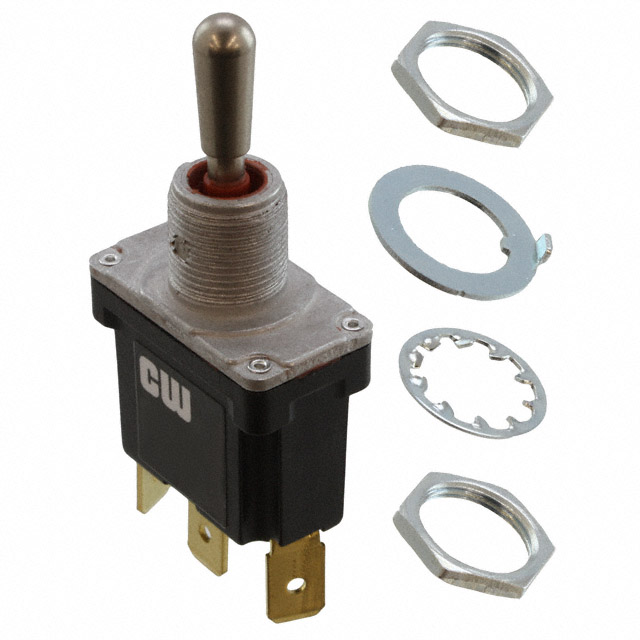

GTB-1B17
ActiveCW Industries
SWITCH TOGGLE SPDT 12A 125V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
GTB-1B17
ActiveCW Industries
SWITCH TOGGLE SPDT 12A 125V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | GTB-1B17 |
|---|---|
| Actuator Length [x] | 17 mm |
| Actuator Material | Brass, Nickel Plated |
| Actuator Type | Standard Round |
| Bushing Thread | 15/32-32 |
| Circuit | SPDT |
| Current Rating (Amps) | 12 A |
| Electrical Life | 30000 Cycles |
| Illumination | Non-Illuminated |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Panel Cutout Dimensions [diameter] | 12 mm |
| Switch Function | Mom-Off-Mom |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Voltage Rating - AC | 125 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 18.41 | |
| 10 | $ 15.88 | |||
| 25 | $ 14.98 | |||
| 50 | $ 14.32 | |||
| 100 | $ 13.70 | |||
| 250 | $ 12.91 | |||
| 500 | $ 12.34 | |||
Description
General part information
GTB-1B17
Toggle Switch SPDT Panel Mount
