CB1.37-IPX4LLK-SARFGT-4IN
ActiveLighthorse Technologies, Inc
CBL ASSY MHF4L LK-RPSMA JK-PL 4"
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CB1.37-IPX4LLK-SARFGT-4IN
ActiveLighthorse Technologies, Inc
CBL ASSY MHF4L LK-RPSMA JK-PL 4"
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | CB1.37-IPX4LLK-SARFGT-4IN | CB1.37 Series |
|---|---|---|
| 1st Connector | RP-SMA Jack | Right Angle, IPEX MHF1 Plug, U.FL (UMCC), SMA Plug, RP-SMA Plug, SMA Jack, I-PEX MHF1 Plug, RP-SMA Jack |
| 1st Connector Mounting Feature | - | Bulkhead - Front Side Nut |
| 1st Connector Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line), Panel Mount |
| 1st Contact Gender | Male | Female, Male |
| 2nd Connector | - | U.FL (UMCC), IPEX MHF1 Plug, Right Angle, Right Angle, I-PEX MHF1 Plug, U.FL (UMCC), I-PEX MHF1 LK (Locking) Plug, Right Angle, IPEX MHF1 LK (Locking) Plug, Right Angle |
| 2nd Connector Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| 2nd Contact Gender | Female | Female |
| Cable Impedance | 50 Ohms | 50 Ohms |
| Cable Type [diameter] | 1.37 mm | 1.37 mm |
| Color | Black | Blue, Black |
| Features | Locking | Opposite Orientation, Shielded, Locking |
| Frequency - Max [Max] | 6000 MHz | 9 - 6000 GHz |
| Ingress Protection | - | IP67 - Dust Tight, Waterproof |
| Length | 4 in | 1.5 - 12 " |
| Length | 101.6 mm | 38.1 - 304.8 mm |
| Length | - | 25.4 - 317.5 mm |
| Length | - | 1 - 12.5 in |
| Operating Temperature [Max] | 90 °C | 90 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Overall Impedance | 50 Ohms | 50 Ohms |
| Style | I-PEX MHF4L LK to RP-SMA | IPEX MHF1 to U.FL (UMCC), U.FL (UMCC), IPEX MHF1, I-PEX MHF4L LK to SMA, I-PEX MHF4L LK to RP-SMA, I-PEX MHF1 to U.FL (UMCC), I-PEX MHF1, I-PEX MHF1 to SMA, IPEX MHF1 to RP-SMA, IPEX MHF1 to SMA, I-PEX MHF1 to RP-SMA |
CB1.37 Series
CBL ASSY IPEX MHF1 PLUG-PLUG 11"
| Part | Color | Length | Length | 2nd Contact Gender | 1st Contact Gender | Operating Temperature [Max] | Operating Temperature [Min] | Style | Cable Type [diameter] | Features | Frequency - Max [Max] | 1st Connector Mounting Type | 1st Connector | Overall Impedance | 2nd Connector Mounting Type | 2nd Connector | Cable Impedance | 1st Connector Mounting Feature | Ingress Protection | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Lighthorse Technologies, Inc CB1.37-2IPX-11IN-6O | Blue | 279.4 mm | 11 " | Female | Female | 90 °C | -40 °C | IPEX MHF1, IPEX MHF1 to U.FL (UMCC), U.FL (UMCC) | 1.37 mm | Opposite Orientation, Shielded | 9 GHz | Free Hanging (In-Line) | IPEX MHF1 Plug, Right Angle, U.FL (UMCC) | 50 Ohms | Free Hanging (In-Line) | U.FL (UMCC), IPEX MHF1 Plug, Right Angle | 50 Ohms | ||||
Lighthorse Technologies, Inc CB1.37-IPX4LLK-SAMGT-6IN | Black | 152.4 mm | 6 in | Female | Male | 90 °C | -40 °C | I-PEX MHF4L LK to SMA | 1.37 mm | Locking | 6000 MHz | Free Hanging (In-Line) | SMA Plug | 50 Ohms | Free Hanging (In-Line) | 50 Ohms | |||||
Lighthorse Technologies, Inc CB1.37-IPX4LLK-SARMGT-10IN | Black | 254 mm | 10 in | Female | Female | 90 °C | -40 °C | I-PEX MHF4L LK to RP-SMA | 1.37 mm | Locking | 6000 MHz | Free Hanging (In-Line) | RP-SMA Plug | 50 Ohms | Free Hanging (In-Line) | 50 Ohms | |||||
Lighthorse Technologies, Inc CB1.37-IPX4LLK-SAF3OGTX15-4IN | Black | 101.6 mm | 4 in | Female | Female | 90 °C | -40 °C | I-PEX MHF4L LK to SMA | 1.37 mm | Locking | 6000 MHz | Panel Mount | SMA Jack | 50 Ohms | Free Hanging (In-Line) | 50 Ohms | Bulkhead - Front Side Nut | IP67 - Dust Tight, Waterproof | |||
Lighthorse Technologies, Inc CB1.37-2IPX-2IN-6O | Blue | 50.8 mm | 2 in | Female | Female | 90 °C | -40 °C | I-PEX MHF1, I-PEX MHF1 to U.FL (UMCC), U.FL (UMCC) | 1.37 mm | Opposite Orientation, Shielded | 9 GHz | Free Hanging (In-Line) | I-PEX MHF1 Plug, Right Angle, U.FL (UMCC) | 50 Ohms | Free Hanging (In-Line) | I-PEX MHF1 Plug, Right Angle, U.FL (UMCC) | 50 Ohms | ||||
Lighthorse Technologies, Inc CB1.37-IPX4LLK-SAF3GT-4IN | Black | 101.6 mm | 4 in | Female | Female | 90 °C | -40 °C | I-PEX MHF4L LK to SMA | 1.37 mm | Locking | 6000 MHz | Panel Mount | SMA Jack | 50 Ohms | Free Hanging (In-Line) | 50 Ohms | Bulkhead - Front Side Nut | ||||
Lighthorse Technologies, Inc CB1.37-IPX4LLK-SAF3GT-6IN | Black | 152.4 mm | 6 in | Female | Female | 90 °C | -40 °C | I-PEX MHF4L LK to SMA | 1.37 mm | Locking | 6000 MHz | Panel Mount | SMA Jack | 50 Ohms | Free Hanging (In-Line) | 50 Ohms | Bulkhead - Front Side Nut | ||||
Lighthorse Technologies, Inc CB1.37-IPXLK-SAF3OGTX15-10IN | Black | 254 mm | 10 in | Female | Female | 90 °C | -40 °C | I-PEX MHF1 to SMA | 1.37 mm | Locking | 6000 MHz | Panel Mount | SMA Jack | 50 Ohms | Free Hanging (In-Line) | I-PEX MHF1 LK (Locking) Plug, Right Angle | 50 Ohms | Bulkhead - Front Side Nut | IP67 - Dust Tight, Waterproof | ||
Lighthorse Technologies, Inc CB1.37-IPX4LLK-SARF3OGTX9-4IN | Black | 101.6 mm | 4 in | Female | Male | 90 °C | -40 °C | I-PEX MHF4L LK to RP-SMA | 1.37 mm | Locking | 6000 MHz | Panel Mount | RP-SMA Jack | 50 Ohms | Free Hanging (In-Line) | 50 Ohms | Bulkhead - Front Side Nut | IP67 - Dust Tight, Waterproof | |||
Lighthorse Technologies, Inc CB1.37-2IPX-9.5IN-6O | Blue | 241.3 mm | 9.5 in | Female | Female | 90 °C | -40 °C | IPEX MHF1, IPEX MHF1 to U.FL (UMCC), U.FL (UMCC) | 1.37 mm | Opposite Orientation, Shielded | 9 GHz | Free Hanging (In-Line) | IPEX MHF1 Plug, Right Angle, U.FL (UMCC) | 50 Ohms | Free Hanging (In-Line) | U.FL (UMCC), IPEX MHF1 Plug, Right Angle | 50 Ohms |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 11.64 | |
| 10 | $ 10.95 | |||
| 25 | $ 10.34 | |||
| 50 | $ 9.80 | |||
| 100 | $ 9.31 | |||
| 250 | $ 8.46 | |||
| 500 | $ 7.76 | |||
Description
General part information
CB1.37 Series

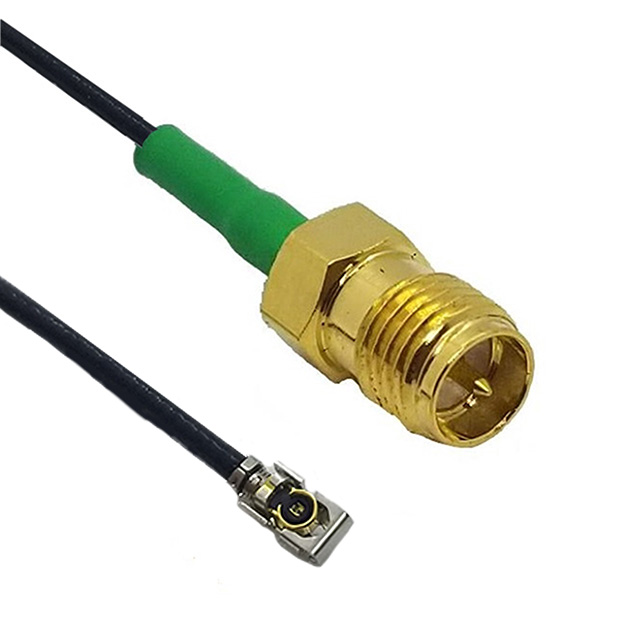

Cable Assembly Coaxial I-PEX MHF4L LK to RP-SMA 1.37mm OD Coaxial Cable 4.000" (101.60mm)
