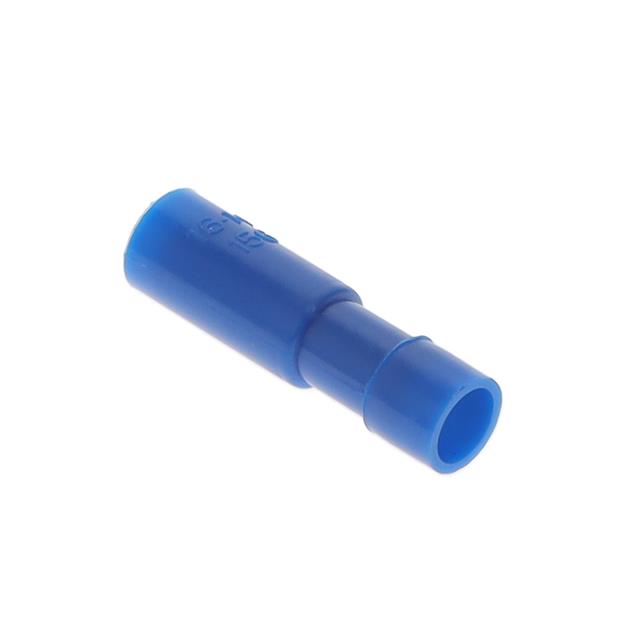

82F-156-NBL-A
Active3M (TC)
CONN TERM RCPT 14-16AWG CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
82F-156-NBL-A
Active3M (TC)
CONN TERM RCPT 14-16AWG CRIMP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 82F-156-NBL-A |
|---|---|
| Color | Blue |
| Diameter - Barrel [diameter] | 3.96 mm |
| Diameter - Barrel [diameter] | 0.156 in |
| Insulation | Fully Insulated |
| Length - Barrel [x] | 6.35 mm |
| Length - Barrel [x] | 0.25 in |
| Length - Overall [x] | 1.02 in |
| Length - Overall [x] | 25.91 mm |
| Material - Insulation | Nylon, Polyamide (PA) |
| Terminal Type | Female, Receptacle (Socket) |
| Termination | Crimp |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.50 | |
| 10 | $ 0.38 | |||
| 25 | $ 0.34 | |||
| 50 | $ 0.32 | |||
| 100 | $ 0.29 | |||
| 250 | $ 0.26 | |||
| 500 | $ 0.24 | |||
| 1000 | $ 0.23 | |||
| 2500 | $ 0.20 | |||
Description
General part information
82F Series
Terminal Connector Female, Receptacle (Socket) 14-16 AWG Crimp
Documents
Technical documentation and resources
No documents available
