MPQ7230GLE-AEC1-Z
ActiveMONOLITHIC POWER SYSTEMS (MPS)
42V, 1.2A, SYNCHRONOUS BUCK-BOOS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MPQ7230GLE-AEC1-Z
ActiveMONOLITHIC POWER SYSTEMS (MPS)
42V, 1.2A, SYNCHRONOUS BUCK-BOOS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MPQ7230GLE-AEC1-Z |
|---|---|
| Applications | General Purpose |
| Current - Output / Channel | 1.2 A, 3 A |
| Dimming | PWM |
| Frequency | 410 kHz |
| Grade | Automotive |
| Internal Switch(s) | True |
| Mounting Type | Wettable Flank, Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -40 °C |

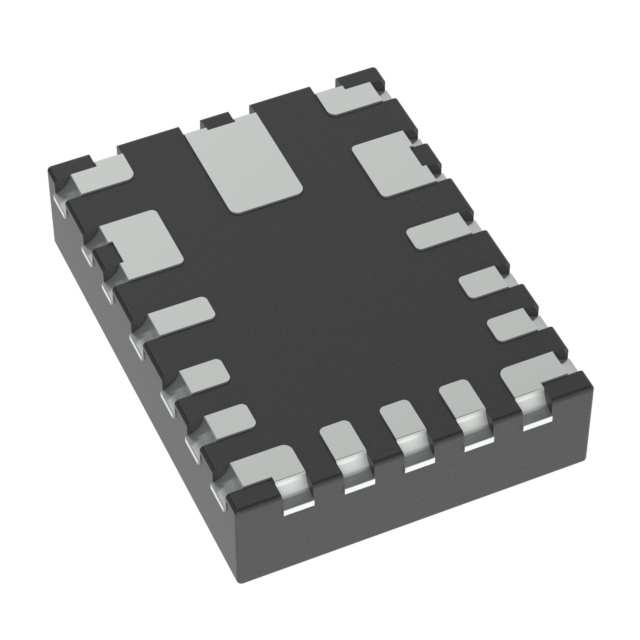

| Package / Case | 19-PowerVFQFN |
| Qualification | AEC-Q100 |
| Supplier Device Package | 19-QFN (3x4) |
| Topology | Step-Down (Buck), Step-Up (Boost) |
| Type | DC DC Regulator |
| Voltage - Supply (Max) [Max] | 42 V |
| Voltage - Supply (Min) [Min] | 6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 5.03 | |
| 10 | $ 4.52 | |||
| 25 | $ 4.27 | |||
| 100 | $ 3.70 | |||
| 250 | $ 3.51 | |||
| 500 | $ 3.15 | |||
| 1000 | $ 2.66 | |||
| 2500 | $ 2.53 | |||
| Digi-Reel® | 1 | $ 5.03 | ||
| 10 | $ 4.52 | |||
| 25 | $ 4.27 | |||
| 100 | $ 3.70 | |||
| 250 | $ 3.51 | |||
| 500 | $ 3.15 | |||
| 1000 | $ 2.66 | |||
| 2500 | $ 2.53 | |||
| Tape & Reel (TR) | 5000 | $ 2.35 | ||
Description
General part information
MPQ7230GLE-AEC1-Z
LED Driver IC 1 Output DC DC Regulator Step-Down (Buck), Step-Up (Boost) PWM Dimming 1.2A, 3A 19-QFN (3x4)
Documents
Technical documentation and resources
