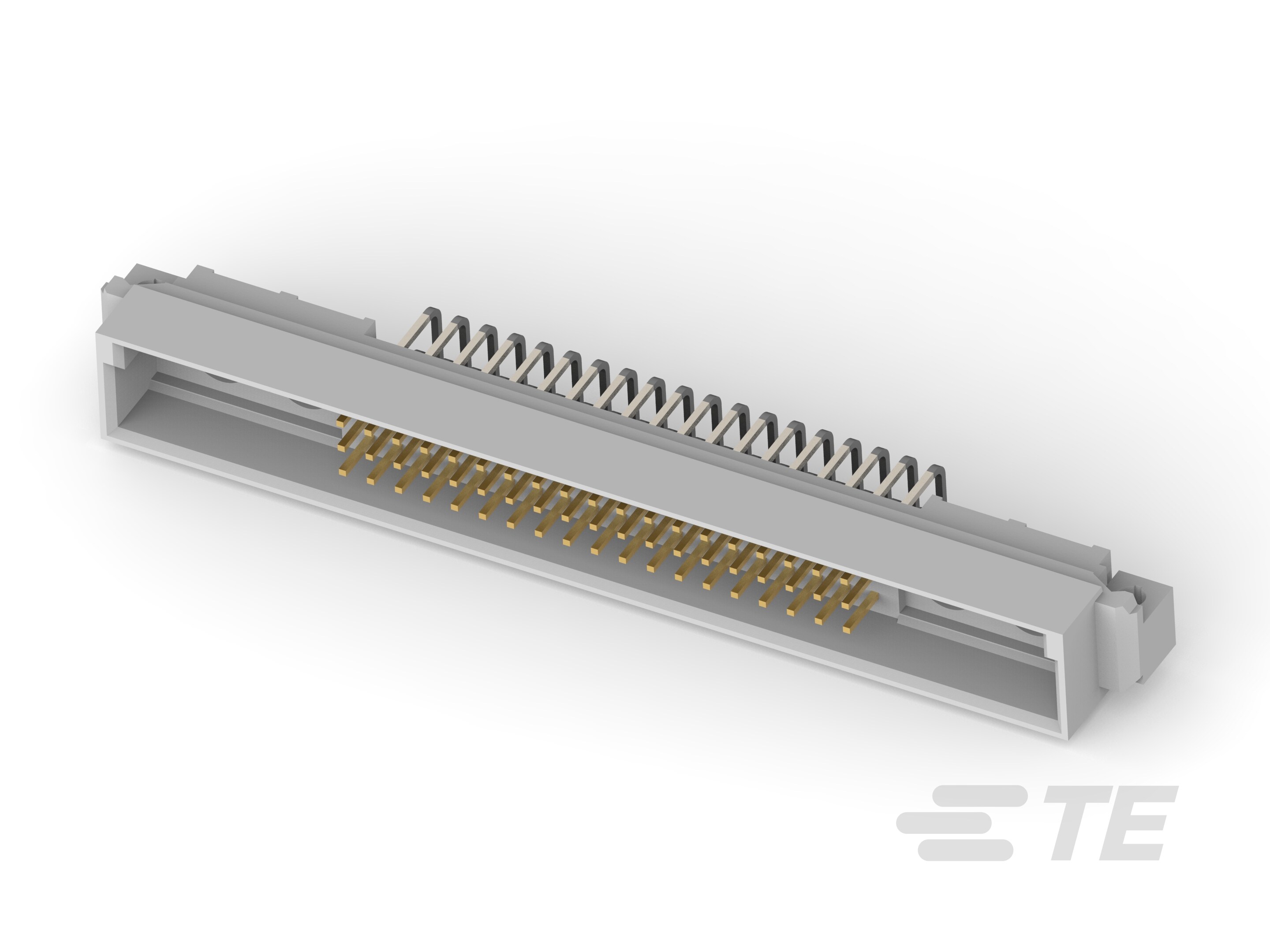

Specification	148412-5

Connector Type	Male Pins, Plug
Contact Finish	Gold-Palladium, Gold
Level, Class	2
Material - Insulation	Polyester, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions (Normal)	60
Number of Positions (Power)	4
Number of Positions (Total)	64
Number of Positions Loaded	60
Number of Rows	3
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Pitch	0.1 in
Style	M
Termination	Solder

EUROCARD TYPE M Series

Part	Style	Contact Finish	Termination	Number of Rows	Number of Positions Loaded	Level, Class	Connector Type	Number of Positions	Pitch	Mounting Type	Features	Material Flammability Rating	Operating Temperature (Max)	Operating Temperature (Min)	Material - Insulation	Number of Positions Loaded
TE Connectivity AMP Connectors 4-1393637-9
TE Connectivity AMP Connectors 4-1393637-6	C	Gold Gold-Palladium	Press-Fit	3	All	2	Female Sockets Receptacle	96	0.1 in	Through Hole	Board Guide	UL94 V-0	125 °C	-55 °C	Glass Filled PBT Polybutylene Terephthalate Polyester
TE Connectivity AMP Connectors 7-1393637-3	C	Gold Gold-Palladium	Press-Fit Wire Wrap	3	All	2	Female Sockets Receptacle	96	0.1 in	Through Hole		UL94 V-0	125 °C	-55 °C	Glass Filled PBT Polybutylene Terephthalate Polyester
TE Connectivity AMP Connectors 4-1393637-9	C	Gold Gold-Palladium	Press-Fit	3		2	Female Sockets Receptacle	96	0.1 in	Through Hole		UL94 V-0	125 °C	-55 °C	Glass Filled PBT Polybutylene Terephthalate Polyester	64
TE Connectivity AMP Connectors 2-1393637-9	C	Gold Gold-Palladium	Press-Fit Wire Wrap	3	All	2	Female Sockets Receptacle	96	0.1 in	Through Hole		UL94 V-0	125 °C	-55 °C	Glass Filled PBT Polybutylene Terephthalate Polyester
TE Connectivity AMP Connectors 4-1393637-4	C/2 (1/2 C)	Gold Gold-Palladium	Press-Fit	3	All	2	Female Sockets Receptacle	48	0.1 in	Through Hole		UL94 V-0	125 °C	-55 °C	Glass Filled PBT Polybutylene Terephthalate Polyester
