Specification	EP2C8Q208I8N

Mounting Type	Surface Mount
Number of I/O	138
Number of LABs/CLBs	516
Number of Logic Elements/Cells	8256
Operating Temperature (Max)	100 °C
Operating Temperature (Min)	-40 °C

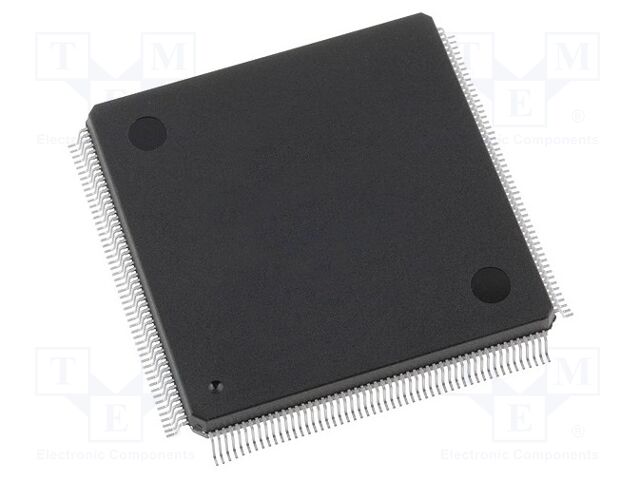

Package / Case	208-BFQFP
Package Length	28 mm
Package Name	208-PQFP
Package Width	28 mm
Total RAM Bits	165888 bits
Voltage - Supply (Maximum)	1.25 V
Voltage - Supply (Minimum)	1.15 V

cyclone-ii Series

Part	Number of I/O	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Number of LABs/CLBs	Total RAM Bits	Package / Case	Package Width	Package Name	Package Length	Number of Logic Elements/Cells	Operating Temperature (Max)	Operating Temperature (Min)	Mounting Type
Altera EP2C35F672I8N	475	1.25 V	1.15 V	2076	483840 bits	672-BGA	27 mm	672-FBGA	27 mm	33216	100 °C	-40 °C	Surface Mount
Altera EP2C35U484I8N	322	1.25 V	1.15 V	2076	483840 bits	484-FBGA	19 mm	484-UBGA	19 mm	33216	100 °C	-40 °C	Surface Mount
Altera EP2C20F256C8N	152	1.25 V	1.15 V	1172	239616 bits	256-LBGA	17 mm	256-FBGA	17 mm	18752	85 °C	0 °C	Surface Mount
Altera EP2C5Q208C8N	142	1.25 V	1.15 V	288	119808 bits	208-BFQFP	28 mm	208-PQFP	28 mm	4608	85 °C	0 °C	Surface Mount
Altera EP2C8F256C7N	182	1.25 V	1.15 V	516	165888 bits	256-LBGA	17 mm	256-FBGA	17 mm	8256	85 °C	0 °C	Surface Mount
Altera EP2C8T144C7N	85	1.25 V	1.15 V	516	165888 bits	144-LQFP	20 mm	144-TQFP	20 mm	8256	85 °C	0 °C	Surface Mount
Altera EP2S15F484C5N	342	1.25 V	1.15 V	780	419328 bits	484-BBGA	23 mm	484-FBGA	23 mm	15600	85 °C	0 °C	Surface Mount
Altera EP2C8Q208C7N	138	1.25 V	1.15 V	516	165888 bits	208-BFQFP	28 mm	208-PQFP	28 mm	8256	85 °C	0 °C	Surface Mount
Altera EP2C8T144C6N	85	1.25 V	1.15 V	516	165888 bits	144-LQFP	20 mm	144-TQFP	20 mm	8256	85 °C	0 °C	Surface Mount
Altera EP2C35U484I8N	322	1.25 V	1.15 V	2076	483840 bits	484-FBGA	19 mm	484-UBGA	19 mm	33216	100 °C	-40 °C	Surface Mount
