S1W0-5630358003-0000003S-00004

Active

Seoul Semiconductor

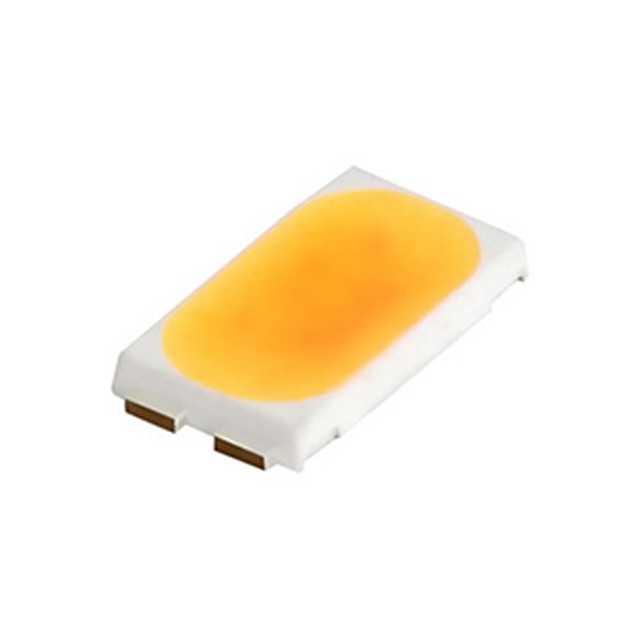

LED 5630 WARM WHT 3500K SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

S1W0-5630358003-0000003S-00004

Active

Seoul Semiconductor

LED 5630 WARM WHT 3500K SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.37
		10	$ 0.24
		100	$ 0.16
		500	$ 0.11
		1000	$ 0.09
		2000	$ 0.08
	Digi-Reel®	1	$ 0.37
		10	$ 0.24
		100	$ 0.16
		500	$ 0.11
		1000	$ 0.09
		2000	$ 0.08
	Tape & Reel (TR)	4500	$ 0.08
		9000	$ 0.08
		13500	$ 0.07
		31500	$ 0.07
		112500	$ 0.06

Description

General part information

S1W0 Series

LED Lighting 5630 White, Warm 3500K 3-Step MacAdam Ellipse 2.78V 65mA 120° 2211 (5630 Metric)

Documents

Technical documentation and resources

Datasheet

Specification	S1W0-5630358003-0000003S-00004	S1W0 Series

	-	-
CCT (K)	3500 K	2700 - 6500 K
Color	White, Warm	White, Warm, Cool, Neutral
CRI (Color Rendering Index)	80	70 - 90
Current - Max [Max]	200 mA	1.5 - 300 A
Current - Test	65 mA	65 mA
Flux @ 25°C, Current - Test	35 lm	29 - 35 lm
Flux @ 85°C, Current - Test	-	195 - 1240 lm
Height - Seated (Max)	-	2.45 mm
Height - Seated (Max)	-	0.096 in
Height - Seated (Max) [Max] [z]	0.85 mm	0.54 - 2.39 mm
Height - Seated (Max) [Max] [z]	0.033 "	0.021 - 0.094 in
Lumens/Watt @ Current - Test	195 lm/W	100 - 195 lm/W
Mounting Type	Surface Mount	Surface Mount
Package / Case	2211 (5630 Metric)	2020, 2-SMD, No Lead, 1411, 2211 (5630 Metric), 1414
Package / Case	-	5050 Metric, 3528 Metric, 3535 Metric
Size / Dimension	-	2.21 - 3.5 mm
Size / Dimension	-	2.21 - 3.5 mm
Size / Dimension [x]	0.205 in	0.13 - 3.3 in
Size / Dimension [x]	5.2 mm	0.087 - 5.2 mm
Size / Dimension [y]	3 mm	0.087 - 5 mm
Size / Dimension [y]	0.118 in	0.11 - 2.8 "
Supplier Device Package	-	5050, SMD, 3535
Supplier Device Package	-	3528
Thermal Resistance of Package	-	0.8 °C/W
Thermal Resistance of Package	-	4 - 30 °C/W
Thermal Resistance of Package	-	3.2 °C/W
Thermal Resistance of Package [diameter]	10 °C/W	3 - 13 °C/W
Viewing Angle	120 °	118 - 140 °
Voltage - Forward (Vf) (Typ)	2.78 V	2.72 - 11 V

Part

Current - Max [Max]

Height - Seated (Max) [Max] [z]

Thermal Resistance of Package [custom]

Mounting Type

Color

CRI (Color Rendering Index)

Size / Dimension [x]

Size / Dimension [y]

Size / Dimension [x]

Package / Case

Flux @ 85°C, Current - Test

Lumens/Watt @ Current - Test

Viewing Angle

CCT (K)

Supplier Device Package

Voltage - Forward (Vf) (Typ)

Size / Dimension [y]

Size / Dimension [x]

Thermal Resistance of Package [custom]

Thermal Resistance of Package [diameter]

Supplier Device Package

Flux @ 25°C, Current - Test

Current - Test

Thermal Resistance of Package

Height - Seated (Max) [Max]

Seoul Semiconductor

S1W0-5050277012-00000000-PS001

1.5 A

0.043 in

1.1 mm

0.8 °C/W

Surface Mount

Warm, White

0.197 in

5 mm

0.197 "

5 mm

2020

5050 Metric

1010 lm

131 lm/W

125 °

2700 K

5050

11 V

Seoul Semiconductor

S1W0-5050508006-0000005S-00002

Seoul Semiconductor

S1W0-2222508003-00000000-P0001

2 A

0.021 in

0.54 mm

Surface Mount

Cool, White

0.087 "

2-SMD, No Lead

289 lm

149 lm/W

140 °

5000 K

SMD

2.78 V

2.21 mm

4 °C/W

Seoul Semiconductor

S1W0-2835279003-0000003S-0P006

300 mA

0.035 "

0.9 mm

Surface Mount

Warm, White

0.13 in, 3.3 mm

0.11 in, 2.8 mm

1411

3528 Metric

163 lm/W

120 °

2700 K

2.72 V

13 °C/W

3528

29 lm

65 mA

Seoul Semiconductor

S1W0-2222658003-00000000-P0001

2 A

0.021 in

0.54 mm

Surface Mount

Cool, White

0.087 "

2-SMD, No Lead

146 lm/W

140 °

6500 K

SMD

2.78 V

2.21 mm

4 °C/W

Seoul Semiconductor

S1W0-3030578003-0000003S-0P004

Seoul Semiconductor

S1W0-2222657003-00000000-P0001

2 A

0.021 in

0.54 mm

Surface Mount

Cool, White

0.087 "

2-SMD, No Lead

306 lm

157 lm/W

140 °

6500 K

SMD

2.78 V

2.21 mm

4 °C/W

Seoul Semiconductor

S1W0-5050358012-00000000-PS001

1.5 A

0.043 in

1.1 mm

0.8 °C/W

Surface Mount

Warm, White

0.197 in

5 mm

0.197 "

5 mm

2020

5050 Metric

1020 lm

132 lm/W

125 °

3500 K

5050

11 V

Seoul Semiconductor

S1W0-2222307003-00000000-P0001

2 A

0.021 in

0.54 mm

Surface Mount

Warm, White

0.087 "

2-SMD, No Lead

302 lm

155 lm/W

140 °

SMD

2.78 V

2.21 mm

4 °C/W

Seoul Semiconductor

S1W0-2222277003-00000000-00001

2 A

0.021 in

0.54 mm

Surface Mount

Warm, White

0.087 "

2-SMD, No Lead

151 lm/W

140 °

2700 K

SMD

2.78 V

2.21 mm

4 °C/W

Part	Current - Max [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Thermal Resistance of Package [custom]	Mounting Type	Color	CRI (Color Rendering Index)	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Package / Case	Package / Case	Flux @ 85°C, Current - Test	Lumens/Watt @ Current - Test	Viewing Angle	CCT (K)	Supplier Device Package	Voltage - Forward (Vf) (Typ)	Size / Dimension [y]	Size / Dimension [x]	Thermal Resistance of Package [custom]	Thermal Resistance of Package [diameter]	Supplier Device Package	Flux @ 25°C, Current - Test	Current - Test
Seoul Semiconductor S1W0-5050277012-00000000-PS001	1.5 A	0.043 in	1.1 mm	0.8 °C/W	Surface Mount	Warm, White	70	0.197 in	5 mm	0.197 "	5 mm	2020	5050 Metric	1010 lm	131 lm/W	125 °	2700 K	5050	11 V
Seoul Semiconductor S1W0-5050508006-0000005S-00002
Seoul Semiconductor S1W0-2222508003-00000000-P0001	2 A	0.021 in	0.54 mm		Surface Mount	Cool, White	80		0.087 "		0.087 "	2-SMD, No Lead		289 lm	149 lm/W	140 °	5000 K	SMD	2.78 V	2.21 mm	2.21 mm	4 °C/W
Seoul Semiconductor S1W0-2835279003-0000003S-0P006	300 mA	0.035 "	0.9 mm		Surface Mount	Warm, White	90	0.13 in, 3.3 mm		0.11 in, 2.8 mm		1411	3528 Metric		163 lm/W	120 °	2700 K		2.72 V				13 °C/W	3528	29 lm	65 mA
Seoul Semiconductor S1W0-2222658003-00000000-P0001	2 A	0.021 in	0.54 mm		Surface Mount	Cool, White	80		0.087 "		0.087 "	2-SMD, No Lead			146 lm/W	140 °	6500 K	SMD	2.78 V	2.21 mm	2.21 mm	4 °C/W
Seoul Semiconductor S1W0-3030578003-0000003S-0P004
Seoul Semiconductor S1W0-2222657003-00000000-P0001	2 A	0.021 in	0.54 mm		Surface Mount	Cool, White	70		0.087 "		0.087 "	2-SMD, No Lead		306 lm	157 lm/W	140 °	6500 K	SMD	2.78 V	2.21 mm	2.21 mm	4 °C/W
Seoul Semiconductor S1W0-5050358012-00000000-PS001	1.5 A	0.043 in	1.1 mm	0.8 °C/W	Surface Mount	Warm, White	80	0.197 in	5 mm	0.197 "	5 mm	2020	5050 Metric	1020 lm	132 lm/W	125 °	3500 K	5050	11 V
Seoul Semiconductor S1W0-2222307003-00000000-P0001	2 A	0.021 in	0.54 mm		Surface Mount	Warm, White	70		0.087 "		0.087 "	2-SMD, No Lead		302 lm	155 lm/W	140 °		SMD	2.78 V	2.21 mm	2.21 mm	4 °C/W
Seoul Semiconductor S1W0-2222277003-00000000-00001	2 A	0.021 in	0.54 mm		Surface Mount	Warm, White	70		0.087 "		0.087 "	2-SMD, No Lead			151 lm/W	140 °	2700 K	SMD	2.78 V	2.21 mm	2.21 mm	4 °C/W
