2900368

Active

Phoenix Contact

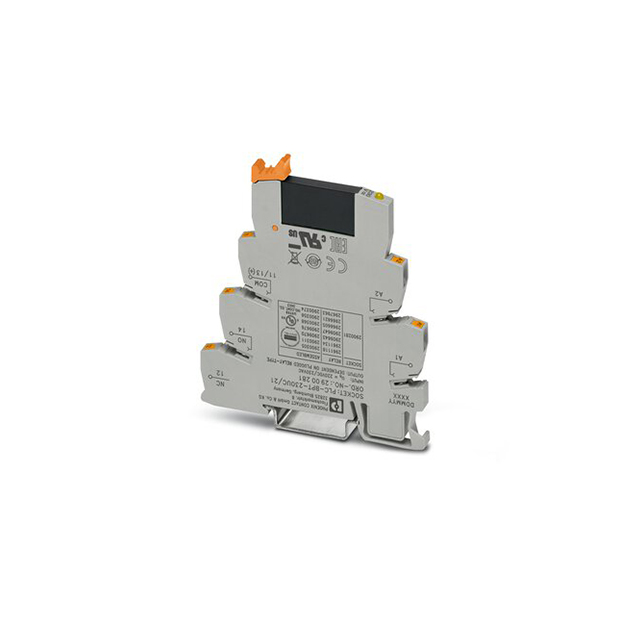

SSR RELAY SPST-NO 3A 3-33V

Search across all available documentation for this part.

Active

Phoenix Contact

SSR RELAY SPST-NO 3A 3-33V

Technical Specifications

Parameters and characteristics commom to parts in this series

SSR RELAY SPST-NO 100MA 3-48V

Part	Termination Style	Mounting Type	Load Current	Voltage - Load [Max]	Voltage - Load [Min]	Output Type	Approval Agency	Package / Case	Voltage - Input	Operating Temperature [Min]	Operating Temperature [Max]
Phoenix Contact 2900361	Spring Terminal	DIN Rail	100 mA	48 V	3 V	DC	CE, DNV, UKCA	Module	230 VAC	-25 °C	60 °C
Phoenix Contact 2900365	Spring Terminal	DIN Rail	3 A	33 V	3 V	DC	CE, DNV, UKCA	Module	48 VDC	-25 °C	60 °C
Phoenix Contact 2900364	Spring Terminal	DIN Rail	3 A	33 V	3 V	DC	CE, DNV, UKCA	Module	24 V	-25 °C	60 °C
Phoenix Contact 2900368	Spring Terminal	DIN Rail	3 A	33 V	3 V	DC	CE, DNV, UKCA	Module	230 VAC	-25 °C	60 °C
Phoenix Contact 2900369	Spring Terminal	DIN Rail	0.75 A	253 V	24 V	AC	CE, DNV, UKCA	Module	24 V	-25 °C	60 °C
Phoenix Contact 2900367	Spring Terminal	DIN Rail	3 A	33 V	3 V	DC	CE, DNV, UKCA	Module	120 VAC	-25 °C	60 °C
Phoenix Contact 2900366	Spring Terminal	DIN Rail	3 A	33 V	3 V	DC	CE, DNV, UKCA	Module	60 VDC	-25 °C	60 °C
Phoenix Contact 2900362	Spring Terminal	DIN Rail	20 mA	33 V	3 V	DC	CE, UKCA	Module	24 V	-25 °C	60 °C
Phoenix Contact 2900363	Spring Terminal	DIN Rail	50 mA	6 V	4.5 V	DC	CE, UKCA		24 V	-25 °C	60 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 40.22

General part information

Solid State SPST-NO (1 Form A) Module
