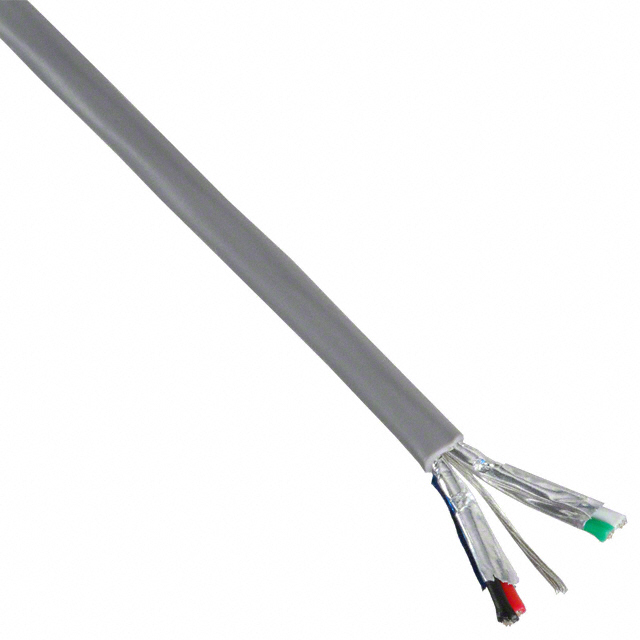

2466C SL021
ActiveALPHA WIRE
MULTI-PAIR 4COND 22AWG
Deep-Dive with AI
Search across all available documentation for this part.
2466C SL021
ActiveALPHA WIRE
MULTI-PAIR 4COND 22AWG
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 2466C SL021 | 2466C Series |
|---|---|---|
| Cable Type | Multi-Pair | Multi-Pair |
| Conductor Insulation | Polypropylene (PP) | Polypropylene (PP) |
| Conductor Material | Copper, Tinned | Copper, Tinned |
| Conductor Strand [custom] | 7 | 7 |
| Conductor Strand [custom] | 30 AWG | 30 AWG |
| Features | Drain Wire | Drain Wire |
| Jacket (Insulation) Diameter [diameter] | 0.17 in | 0.17 in |
| Jacket (Insulation) Diameter [diameter] | 4.32 mm | 4.32 mm |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) |
| Jacket (Insulation) Thickness | 0.02 in | 0.02 in |
| Jacket (Insulation) Thickness | 0.508 mm | 0.508 mm |
| Jacket Color | Slate | Slate |
| Length | 1000 ft | 1000 ft |
| Length | 304.8 m | 304.8 m |
| Length | - | Enter Number of Feet in Order Quantity |
| Number of Conductors | 4 | 4 |
| Shield Coverage | 100 % | 100 % |
| Shield Material | Aluminum | Aluminum |
| Shield Type | Foil | Foil |
| Spool Size | - | 1524 m |
| Spool Size | - | 5000 ' |
| Usage | Control, Communication | Control, Communication |
| Voltage | 300 V | 300 V |
| Wire Gauge | 22 AWG | 22 AWG |
2466C Series
MULTI-PAIR 4COND 22AWG
| Part | Shield Coverage | Conductor Insulation | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Strand [custom] | Conductor Strand [custom] | Number of Conductors | Usage | Shield Type | Length | Length | Jacket Color | Wire Gauge | Features | Jacket (Insulation) Material | Conductor Material | Cable Type | Voltage | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Shield Material | Length | Spool Size | Spool Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
ALPHA WIRE 2466C SL021 | 100 % | Polypropylene (PP) | 0.02 in | 0.508 mm | 7 | 30 AWG | 4 | Communication, Control | Foil | 1000 ft | 304.8 m | Slate | 22 AWG | Drain Wire | Poly-Vinyl Chloride (PVC) | Copper, Tinned | Multi-Pair | 300 V | 0.17 in | 4.32 mm | Aluminum | |||
ALPHA WIRE 2466C SL013 | 100 % | Polypropylene (PP) | 0.02 in | 0.508 mm | 7 | 30 AWG | 4 | Communication, Control | Foil | Slate | 22 AWG | Drain Wire | Poly-Vinyl Chloride (PVC) | Copper, Tinned | Multi-Pair | 300 V | 0.17 in | 4.32 mm | Aluminum | Enter Number of Feet in Order Quantity | 1524 m | 5000 ' |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
2466C Series
4 (2 Pair Twisted) Conductor Multi-Pair Cable Slate 22 AWG Foil 1000.0' (304.8m)
