130H405042-E

Active

METZ CONNECT USA Inc.

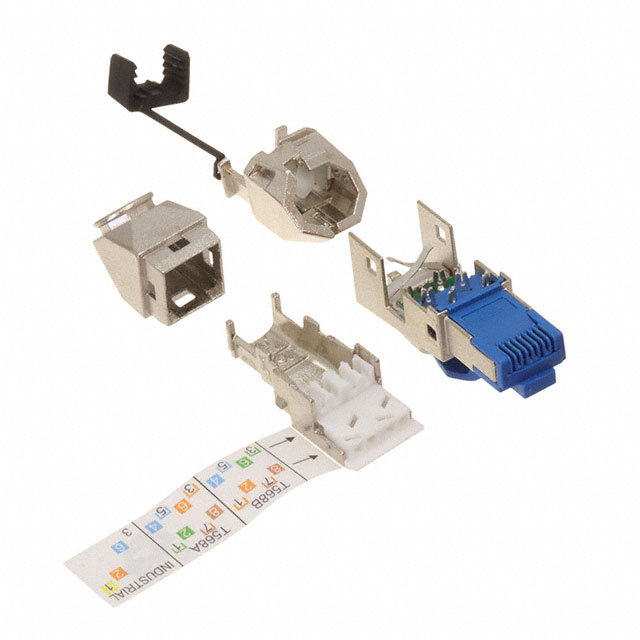

40G RJ45 FIELD PLUG PRO 360

Search across all available documentation for this part.

Active

METZ CONNECT USA Inc.

40G RJ45 FIELD PLUG PRO 360

Technical Specifications

Parameters and characteristics for this part

Specification	130H405042-E

Cable Type	Round Cable, Solid, Stranded Wires
Color	Blue
Connector Type	Plug
Contact Finish	Gold
Contact Material	Tin Bronze
Features	Housing, Strain Relief, Locking Hook, Angled - 90°
Housing Material	Zinc Die Cast
Length	61.7 mm
Length	2.429 in
Number of Positions/Contacts	8p8c (RJ45, Ethernet)
Ratings	Cat8.1
Shielding	Shielded
Termination	IDC
Voltage Rating	50 V
Wire Gauge [Max]	27 AWG
Wire Gauge [Min]	22 AWG

40G RJ45 FIELD PLUG PRO 360

Part	Color	Number of Positions/Contacts	Ratings	Voltage Rating	Contact Material	Length	Length	Contact Finish	Features	Termination	Cable Type	Shielding	Housing Material	Wire Gauge [Min]	Wire Gauge [Max]	Connector Type
METZ CONNECT USA Inc. 130H405042-E	Blue	8p8c (RJ45, Ethernet)	Cat8.1	50 V	Tin Bronze	61.7 mm	2.429 in	Gold	Angled - 90°, Housing, Locking Hook, Strain Relief	IDC	Round Cable, Solid, Stranded Wires	Shielded	Zinc Die Cast	22 AWG	27 AWG	Plug

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Plug Modular Connector 8p8c (RJ45, Ethernet) Position Shielded Cat8.1 IDC
