601E
ObsoleteHammond Manufacturing
TRANSFORMER PULSE 23UH .3DCR
601E
ObsoleteHammond Manufacturing
TRANSFORMER PULSE 23UH .3DCR
Description
General part information
601E

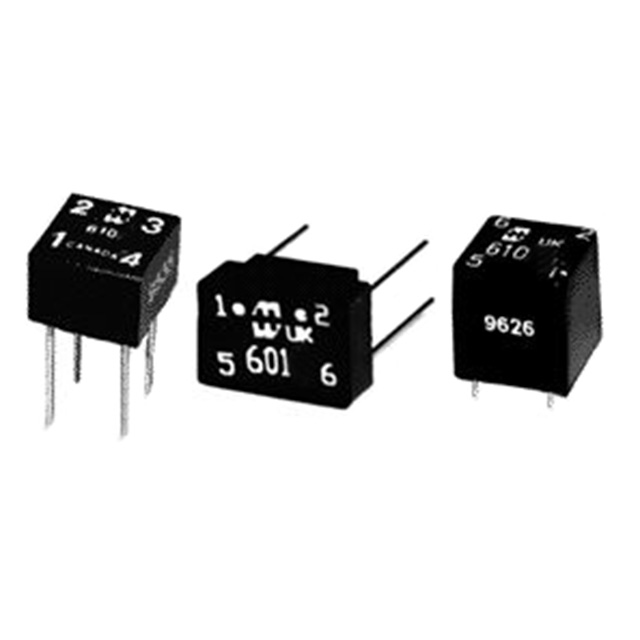

23µH Isolation and Data Interface (Encapsulated) Pulse Transformer 1:1 Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | 601E |
|---|---|
| Height - Seated (Max) | 0.25 in |
| Inductance | 23 µH |
| Mounting Type | Through Hole |
| Size / Dimension Length | 0.5 in |
| Size / Dimension Width | 0.35 in |
| Transformer Type | Data Interface (Encapsulated), Isolation |
| Turns Ratio - Primary | 1 |
| Turns Ratio - Secondary | 1 |
