3240845
ActivePhoenix Contact

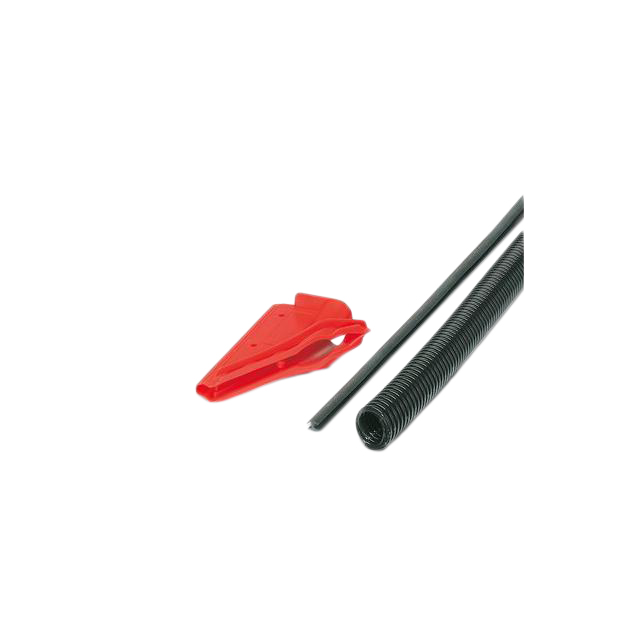

SLIT WRAP 0.65" BLACK
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
3240845
ActivePhoenix Contact
SLIT WRAP 0.65" BLACK
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 3240845 | WP-PA HF-SL Series |
|---|---|---|
| Color | Black | Black |
| Diameter - Inside, Non-Expanded [diameter] | 16.5 mm | 16.5 - 36 mm |
| Diameter - Inside, Non-Expanded [diameter] | 0.65 in | 0.65 - 1.417 in |
| Diameter - Outside, Non-Expanded [diameter] | 21.2 mm | 21.2 - 42.5 mm |
| Diameter - Outside, Non-Expanded [diameter] | 0.835 " | 0.835 - 1.673 in |
| Environment Protection | UV Resistant | UV Resistant |
| Features | Vibration Resistant, Acid Resistant, Solvent Resistant | Vibration Resistant, Acid Resistant, Solvent Resistant |
| Heat Protection | Flame Retardant | Flame Retardant |
| Liquid Protection | Oil Resistant, Gasoline Resistant | Oil Resistant, Gasoline Resistant |
| Material | Nylon, Polyamide (PA), Halogen Free | Nylon, Polyamide (PA), Halogen Free |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Type | Slit Wrap | Slit Wrap |
| Type Attributes | Slit Harness | Slit Harness |
WP-PA HF-SL Series
SLIT WRAP 1.417" BLACK
| Part | Diameter - Outside, Non-Expanded [diameter] | Diameter - Outside, Non-Expanded [diameter] | Type Attributes | Heat Protection | Material | Material Flammability Rating | Features | Diameter - Inside, Non-Expanded [diameter] | Diameter - Inside, Non-Expanded [diameter] | Liquid Protection | Color | Operating Temperature [Min] | Operating Temperature [Max] | Environment Protection | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 3240848 | 42.5 mm | 1.673 in | Slit Harness | Flame Retardant | Halogen Free, Nylon, Polyamide (PA) | UL94 V-0 | Acid Resistant, Solvent Resistant, Vibration Resistant | 1.417 in | 36 mm | Gasoline Resistant, Oil Resistant | Black | -40 °C | 105 ░C | UV Resistant | Slit Wrap |
Phoenix Contact 3240845 | 21.2 mm | 0.835 " | Slit Harness | Flame Retardant | Halogen Free, Nylon, Polyamide (PA) | UL94 V-0 | Acid Resistant, Solvent Resistant, Vibration Resistant | 0.65 in | 16.5 mm | Gasoline Resistant, Oil Resistant | Black | -40 °C | 105 ░C | UV Resistant | Slit Wrap |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 10 | $ 7.36 | |
Description
General part information
WP-PA HF-SL Series
Slit Wrap 0.835" (21.20mm) X Black
