9768 060250

Active

Belden Inc.

MULTI-PAIR 24COND 22AWG

Search across all available documentation for this part.

Active

Belden Inc.

MULTI-PAIR 24COND 22AWG

Technical Specifications

Parameters and characteristics for this part

Specification	9768 060250

Cable Type	Multi-Pair
Conductor Insulation	Polypropylene (PP)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	30 AWG
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	0.464 "
Jacket (Insulation) Diameter [diameter]	11.79 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.914 mm
Jacket (Insulation) Thickness	0.036 in
Jacket Color	Chrome
Length	3000 "
Length	76.2 m
Number of Conductors	24
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Ratings	UL Style 2919
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Audio, Instrumentation, Control
Wire Gauge	22 AWG

Part	Shield Type	Shield Coverage	Conductor Material	Wire Gauge	Shield Material	Usage	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Material	Cable Type	Conductor Insulation	Ratings	Length [x]	Length [x]	Features	Jacket Color	Number of Conductors	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Length	Length
Belden Inc. 9768 060500	Foil	100 %	Copper Tinned	22 AWG	Aluminum	Audio Control Instrumentation	0.914 mm	0.036 in	-20 C	80 C	7	30 AWG	Poly-Vinyl Chloride (PVC)	Multi-Pair	Polypropylene (PP)	UL Style 2919	500 '	152.4 m	Drain Wire	Chrome	24	0.464 "	11.79 mm
Belden Inc. 9768 060250	Foil	100 %	Copper Tinned	22 AWG	Aluminum	Audio Control Instrumentation	0.914 mm	0.036 in	-20 C	80 C	7	30 AWG	Poly-Vinyl Chloride (PVC)	Multi-Pair	Polypropylene (PP)	UL Style 2919			Drain Wire	Chrome	24	0.464 "	11.79 mm	3000 "	76.2 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	250	$ 20.34

General part information

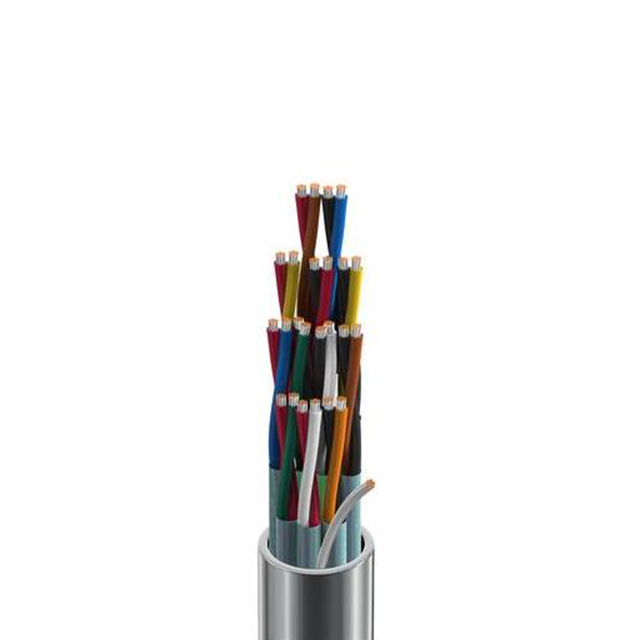

24 (12 Pair Twisted) Conductor Multi-Pair Cable Chrome 22 AWG Foil 250.0' (76.2m)
