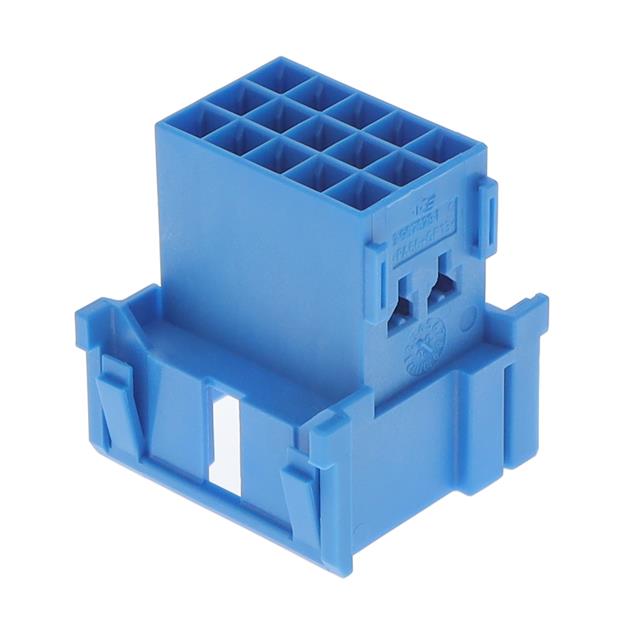

3-967628-1
ActiveTE Connectivity AMP Connectors
TAB HSG 2.8MM 15POS.
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
3-967628-1
ActiveTE Connectivity AMP Connectors
TAB HSG 2.8MM 15POS.
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 3-967628-1 | 967628 Series |
|---|---|---|
| Color | Blue | Blue, Natural |
| Connector Type | Plug | Plug |
| Contact Termination | Crimp | Crimp |
| Contact Type | Tab | Male Pin, Tab |
| Insulation Material | Polyamide (PA66), Nylon 6/6, Glass Filled | Nylon, Polyamide (PA), Glass Filled, Polyamide (PA66), Nylon 6/6, Glass Filled |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Note | - | Contacts Not Included |
| Number of Positions | 15 | 15 |
| Number of Rows | 3 | 3 |
| Operating Temperature [Max] | 120 °C | 120 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Pitch [x] | 5 mm | 5 mm |
| Pitch [x] | 0.197 in | 0.197 in |
| Row Spacing | 0.217 in | 0.217 in |
| Row Spacing | 5.5 mm | 5.5 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 1.74 | |
| 10 | $ 1.51 | |||
| 25 | $ 1.45 | |||
| 50 | $ 1.41 | |||
| 100 | $ 1.35 | |||
| 250 | $ 1.22 | |||
| 800 | $ 1.13 | |||
967628 Series
CONN PLUG HSG 15POS 5.00MM
| Part | Note | Number of Positions | Contact Termination | Row Spacing | Row Spacing | Operating Temperature [Min] | Operating Temperature [Max] | Pitch [x] | Pitch [x] | Contact Type | Color | Insulation Material | Connector Type | Mounting Type | Number of Rows |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1-967628-4 | Contacts Not Included | 15 | Crimp | 0.217 in | 5.5 mm | -40 °C | 120 °C | 5 mm | 0.197 in | Male Pin | Blue | Glass Filled, Nylon, Polyamide (PA) | Plug | Free Hanging (In-Line) | 3 |
TE Connectivity AMP Connectors 3-967628-1 | 15 | Crimp | 0.217 in | 5.5 mm | -40 °C | 120 °C | 5 mm | 0.197 in | Tab | Blue | Polyamide (PA66), Nylon 6/6, Glass Filled | Plug | Free Hanging (In-Line) | 3 | |
TE Connectivity AMP Connectors 2-967628-1 | 15 | Crimp | 0.217 in | 5.5 mm | -40 °C | 120 °C | 5 mm | 0.197 in | Tab | Natural | Polyamide (PA66), Nylon 6/6, Glass Filled | Plug | Free Hanging (In-Line) | 3 |
Description
General part information
967628 Series
15 Rectangular Connectors - Housings Plug Blue 0.197" (5.00mm)
