PMG-20C

Active

SAB North America

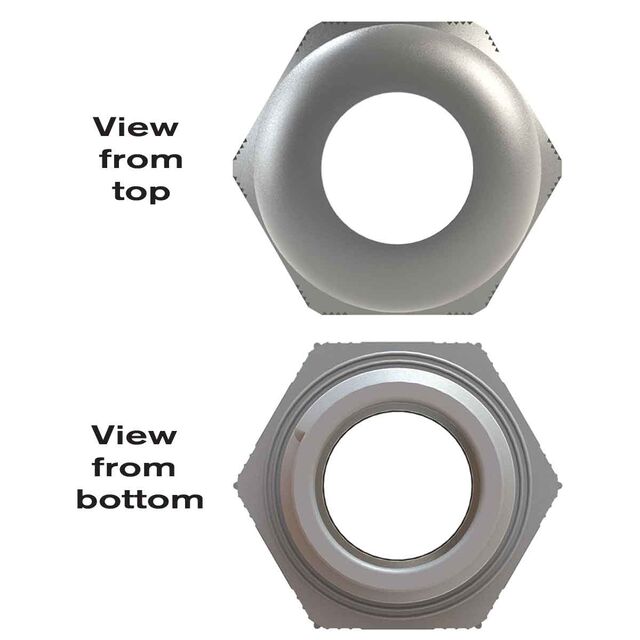

CABLE GLAND 10-14.02MM M20

Search across all available documentation for this part.

Active

SAB North America

CABLE GLAND 10-14.02MM M20

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	PMG-20C	PMG-20 Series

Color	Gray	Gray
Ingress Protection	IP68 - Dust Tight, Waterproof	IP68 - Dust Tight, Waterproof
Operating Temperature [Max]	100 °C	100 °C
Operating Temperature [Min]	-20 C	-20 C
Outside Cable Diameter (Max)	-	12.01 mm
Outside Cable Diameter (Max)	-	0.473 in
Outside Cable Diameter (Max) [Max]	0.552 in	0.355 - 0.552 in
Outside Cable Diameter (Max) [Max]	14.02 mm	9.02 - 14.02 mm
Outside Cable Diameter (Min)	-	7 mm
Outside Cable Diameter (Min)	-	5 mm
Outside Cable Diameter (Min)	-	0.197 in
Outside Cable Diameter (Min) [Min] [diameter]	0.394 in	0.276 - 0.394 in
Outside Cable Diameter (Min) [Min] [diameter]	10 mm	10 mm
Panel Hole Size	0.787 in	0.787 in
Panel Hole Size	20 mm	20 mm
Thread Length	10 mm	10 mm
Thread Length	0.394 in	0.394 in
Thread Size	M20x1.5	M20x1.5
Type	Cable Gland	Cable Gland

CABLE GLAND 7-12.01MM M20

Part	Type	Color	Ingress Protection	Thread Length	Thread Length	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Panel Hole Size	Panel Hole Size	Outside Cable Diameter (Min)	Outside Cable Diameter (Min) [Min] [diameter]	Thread Size	Operating Temperature [Max]	Operating Temperature [Min]	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min]
SAB North America PMG-20RC	Cable Gland	Gray	IP68 - Dust Tight, Waterproof	10 mm	0.394 in	12.01 mm	0.473 in	0.787 in	20 mm	7 mm	0.276 in	M20x1.5	100 °C	-20 C
SAB North America PMG-20C	Cable Gland	Gray	IP68 - Dust Tight, Waterproof	10 mm	0.394 in			0.787 in	20 mm		0.394 in	M20x1.5	100 °C	-20 C	10 mm	0.552 in	14.02 mm
SAB North America PMG-20R	Cable Gland	Gray	IP68 - Dust Tight, Waterproof	10 mm	0.394 in			0.787 in	20 mm			M20x1.5	100 °C	-20 C		0.355 in	9.02 mm	5 mm	0.197 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Cable Gland Polyamide (PA6), Nylon 6 M20x1.5 Gray
