150236-5002-RB

Active

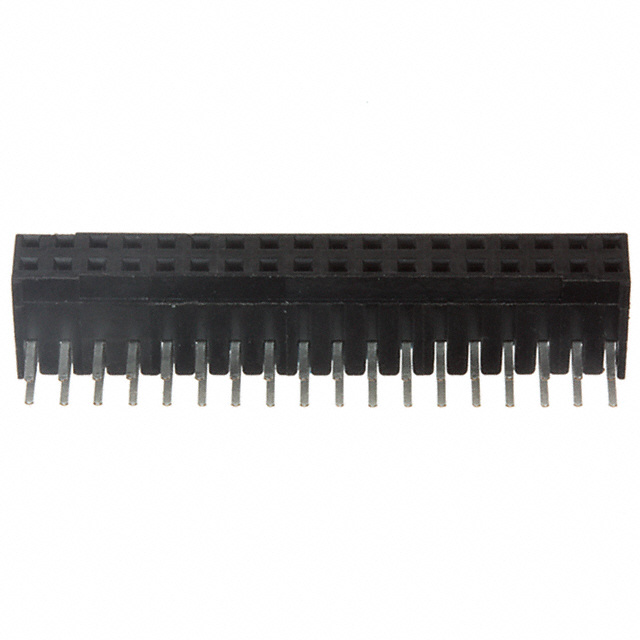

CONN RCPT 36P 0.079 GOLD PCB R/A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

150236-5002-RB

Active

CONN RCPT 36P 0.079 GOLD PCB R/A

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	150236-5002-RB	150236 Series

Connector Type	Receptacle	Receptacle
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin	Tin-Lead, Tin
Contact Finish Thickness - Mating	30 Áin	30 Áin
Contact Finish Thickness - Mating	0.76 Ám	0.76 Ám
Contact Finish Thickness - Post	200 µin	200 µin
Contact Finish Thickness - Post	5.08 µm	5.08 µm
Contact Length - Post	2.54 mm	2.54 mm
Contact Length - Post	0.1 in	0.1 in
Contact Material	Copper Alloy	Copper Alloy
Contact Shape	Square	Square
Contact Type	Female Socket	Female Socket
Fastening Type	Push-Pull	Push-Pull
Features	-	Board Guide, Pick and Place
Insulation Color	Black	Black
Insulation Height	0.179 "	0.179 - 0.183 "
Insulation Height	4.55 mm	4.55 - 4.65 mm
Insulation Material	Thermoplastic	Thermoplastic
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle, Surface Mount
Number of Positions	36	36
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Pitch - Mating [x]	0.079 in	0.079 in
Pitch - Mating [x]	2 mm	2 mm
Row Spacing - Mating	0.079 in	0.079 in
Row Spacing - Mating	2 mm	2 mm
Style	Board to Board, Cable	Board to Board, Cable
Termination	Solder	Solder
Voltage Rating	500 V	500 V

150236 Series

CONN RCPT 36P 0.079 GOLD PCB R/A

Part	Contact Type	Pitch - Mating [x]	Pitch - Mating [x]	Number of Positions	Insulation Height	Insulation Height	Insulation Material	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish - Mating	Style	Contact Material	Contact Length - Post	Contact Length - Post	Connector Type	Contact Finish - Post	Mounting Type	Features	Voltage Rating	Insulation Color	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Shape	Number of Positions Loaded	Row Spacing - Mating	Row Spacing - Mating	Fastening Type	Material Flammability Rating	Number of Rows
3M 150236-5022-TB	Female Socket	0.079 in	2 mm	36	0.179 "	4.55 mm	Thermoplastic	Solder	105 ░C	-55 °C	Gold	Board to Board, Cable	Copper Alloy	2.54 mm	0.1 in	Receptacle	Tin-Lead	Through Hole, Right Angle	Board Guide	500 V	Black	30 Áin	0.76 Ám	200 µin	5.08 µm	Square	All	0.079 in	2 mm	Push-Pull	UL94 V-0	2
3M 150236-2020-RB	Female Socket	0.079 in	2 mm	36	0.183 in	4.65 mm	Thermoplastic	Solder	105 ░C	-55 °C	Gold	Board to Board, Cable	Copper Alloy			Receptacle	Tin	Surface Mount	Board Guide	500 V	Black	30 Áin	0.76 Ám	200 µin	5.08 µm	Square	All	0.079 in	2 mm	Push-Pull	UL94 V-0	2
3M 150236-2020-RB-WE	Female Socket	0.079 in	2 mm	36	0.183 in	4.65 mm	Thermoplastic	Solder	105 ░C	-55 °C	Gold	Board to Board, Cable	Copper Alloy			Receptacle	Tin	Surface Mount	Board Guide, Pick and Place	500 V	Black	30 Áin	0.76 Ám	200 µin	5.08 µm	Square	All	0.079 in	2 mm	Push-Pull	UL94 V-0	2
3M 150236-5002-RB	Female Socket	0.079 in	2 mm	36	0.179 "	4.55 mm	Thermoplastic	Solder	105 ░C	-55 °C	Gold	Board to Board, Cable	Copper Alloy	2.54 mm	0.1 in	Receptacle	Tin	Through Hole, Right Angle		500 V	Black	30 Áin	0.76 Ám	200 µin	5.08 µm	Square	All	0.079 in	2 mm	Push-Pull	UL94 V-0	2

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

150236 Series

36 Position Receptacle Connector 0.079" (2.00mm) Through Hole, Right Angle Gold
