Description
General part information

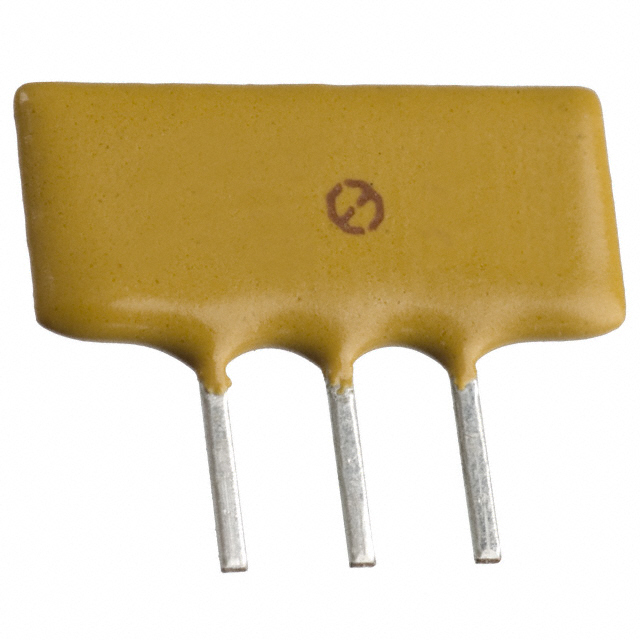

DS1L5DJ400S-C
4 ns ±0.125nS Inductor Delay Line 100 mA 50 Ohms 3-SIP
Technical Specifications
Parameters and characteristics for this part
| Specification | DS1L5DJ400S-C |
|---|---|
| Current | 100 mA |
| DC Resistance (DCR) (Max) | 1 Ohm |
| Delay Time | 4 ns |
| Impedance | 50 Ohm |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -10 °C |
| Package / Case | 3-SIP |
| Tolerance | 0.125 nS |
