Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 11_N-50-12-20/033_-E | 11_N-50 Series |
|---|---|---|
| - | - | |
| Body Finish | White Bronze | White Bronze, Nickel, Tri-Metal, Silver, Gold |
| Body Material | Brass | Brass, Bronze |
| Cable Group | LMR-600 | RG-141, RG-6C, RG-214, Helical, 393, RG-225, 223, RG-142, LMR-600, RG-174, 188, 316, LMR-195, 400, LMR-400, RG-B4C |
| Cable Group | - | 0.5 in |
| Center Contact Material | Bronze | Beryllium Copper, Brass, Bronze |
| Center Contact Plating | Silver | Gold, Silver |
| Connector Style | N Type | N Type |
| Connector Type | Male Pin, Plug | Male Pin, Plug |
| Contact Termination | Crimp | Crimp, Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | Polytetrafluoroethylene (PTFE), Perfluoroalkoxy (PFA) |
| Frequency - Max [Max] | 11 GHz | 3 - 18 GHz |
| Housing Color | Silver | Silver, Gold |
| Impedance | 50 Ohms | 50 Ohms |
| Ingress Protection | - | IP67 - Dust Tight, Waterproof |
| Mating Cycles | 500 | 500 |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Ports | 1 | 1 |
| Operating Temperature [Max] | 165 °C | 70 - 165 °C |
| Operating Temperature [Min] | -65 ░C | -65 - -40 °C |
| Shield Termination | Crimp | Solder, Clamp, Crimp |
| Voltage Rating | 1000 VDC | 1000 VDC |
11_N-50 Series
11_N-50-3-51/133_NE
| Part | Body Finish | Contact Termination | Mounting Type | Mating Cycles | Impedance | Voltage Rating | Body Material | Number of Ports | Frequency - Max [Max] | Connector Type | Connector Style | Operating Temperature [Max] | Operating Temperature [Min] | Cable Group | Center Contact Material | Shield Termination | Housing Color | Center Contact Plating | Dielectric Material | Cable Group | Ingress Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Huber+Suhner, Inc. 11_N-50-3-51/133_NE | White Bronze | Crimp | Free Hanging (In-Line) | 500 | 50 Ohms | 1000 VDC | Brass | 1 | 18 GHz | Male Pin, Plug | N Type | 70 °C | -55 °C | RG-141 | Beryllium Copper | Solder | Silver | Gold | |||
Huber+Suhner, Inc. 11_N-50-3-26/133_NH | |||||||||||||||||||||
Huber+Suhner, Inc. 11_N-50-6-19/12-_NE | Nickel | Crimp | Free Hanging (In-Line) | 500 | 50 Ohms | 1000 VDC | Brass | 1 | 18 GHz | Male Pin, Plug | N Type | 165 °C | -60 °C | RG-6C | Beryllium Copper | Clamp | Silver | Gold | Polytetrafluoroethylene (PTFE) | ||
Huber+Suhner, Inc. 11_N-50-7-44/133_NH | White Bronze | Crimp | Free Hanging (In-Line) | 500 | 50 Ohms | 1000 VDC | Brass | 1 | 11 GHz | Male Pin, Plug | N Type | 165 °C | -65 ░C | RG-214 | Brass | Crimp | Silver | Gold | Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE) | ||
Huber+Suhner, Inc. 11_N-50-7-56/133_UE | Tri-Metal | Crimp | Free Hanging (In-Line) | 500 | 50 Ohms | Brass | 1 | 11 GHz | Male Pin, Plug | N Type | 165 °C | -65 ░C | Brass | Crimp | Silver | Gold | |||||
Huber+Suhner, Inc. 11_N-50-12-60/033_-E | White Bronze | Crimp | Free Hanging (In-Line) | 500 | 50 Ohms | 1000 VDC | Brass | 1 | 11 GHz | Male Pin, Plug | N Type | 85 °C | -55 °C | Helical | Bronze | Clamp | Silver | Silver | Polytetrafluoroethylene (PTFE) | 0.5 in | |
Huber+Suhner, Inc. 11_N-50-4-9/133_NE | White Bronze | Crimp | Free Hanging (In-Line) | 500 | 50 Ohms | 1000 VDC | Brass | 1 | 11 GHz | Male Pin, Plug | N Type | 165 °C | -65 ░C | Bronze | Clamp | Silver | Gold | Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE) | |||
Huber+Suhner, Inc. 11_N-50-9-9/033_-E | White Bronze | Crimp | Free Hanging (In-Line) | 500 | 50 Ohms | 1000 VDC | Brass | 1 | 11 GHz | Male Pin, Plug | N Type | 85 °C | -40 °C | Bronze | Clamp | Silver | Silver | Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE) | |||
Huber+Suhner, Inc. 11_N-50-5-18/103_NH | Silver | Solder | Free Hanging (In-Line) | 500 | 50 Ohms | 1000 VDC | Brass | 1 | 11 GHz | Male Pin, Plug | N Type | 165 °C | -65 ░C | Beryllium Copper | Solder | Silver | Gold | Polytetrafluoroethylene (PTFE) | |||
Huber+Suhner, Inc. 11_N-50-7-74/133_UE-1 | White Bronze | Crimp | Free Hanging (In-Line) | 500 | 50 Ohms | 1000 VDC | Brass | 1 | 11 GHz | Male Pin, Plug | N Type | 160 °C | -40 °C | Bronze | Clamp | Silver | Gold | Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 10 | $ 40.64 | |
Description
General part information
11_N-50 Series

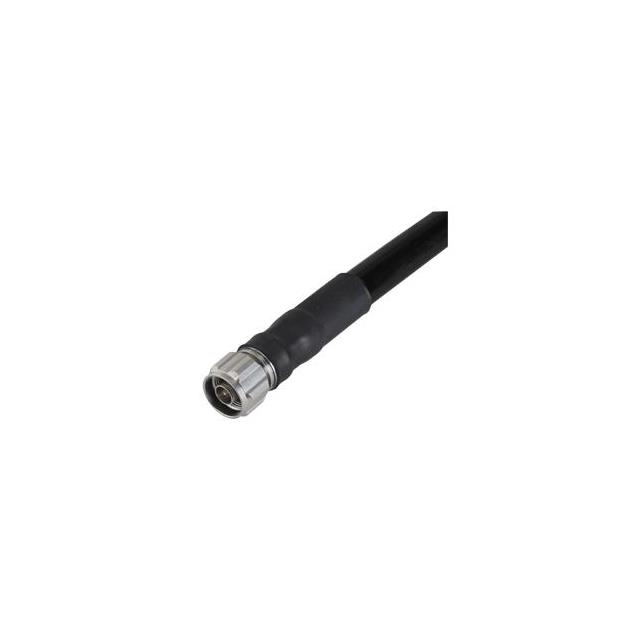

N Type Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Crimp
