ARG320C 12R J

Active

Ohmite

RES CHAS MNT 12 OHM 5% 400W

Search across all available documentation for this part.

Active

Ohmite

RES CHAS MNT 12 OHM 5% 400W

Technical Specifications

Parameters and characteristics commom to parts in this series

RES CHAS MNT 18 OHM 5% 400W

Part	Lead Style	Composition	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature [Max]	Temperature Coefficient	Package / Case	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Mounting Feature	Tolerance	Resistance	Coating, Housing Type
Ohmite ARG320C 18R J	Wire Leads	Wirewound	36.5 mm	7.874 in	200 mm	1.437 in	250 °C	150 ppm/°C	Rectangular, Wire Leads	1.102 in	28 mm	Screw Holes	5 %	18 Ohms	Aluminum
Ohmite ARG320C 24R J	Wire Leads	Wirewound	36.5 mm	7.874 in	200 mm	1.437 in	250 °C	150 ppm/°C	Rectangular, Wire Leads	1.102 in	28 mm	Screw Holes	5 %	24 Ohms	Aluminum
Ohmite ARG320C 12R J	Wire Leads	Wirewound	36.5 mm	7.874 in	200 mm	1.437 in	250 °C	150 ppm/°C	Rectangular, Wire Leads	1.102 in	28 mm	Screw Holes	5 %	12 Ohms	Aluminum
Ohmite ARG320C 10R J	Wire Leads	Wirewound	36.5 mm	7.874 in	200 mm	1.437 in	250 °C	150 ppm/°C	Rectangular, Wire Leads	1.102 in	28 mm	Screw Holes	5 %	10 Ohms	Aluminum

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

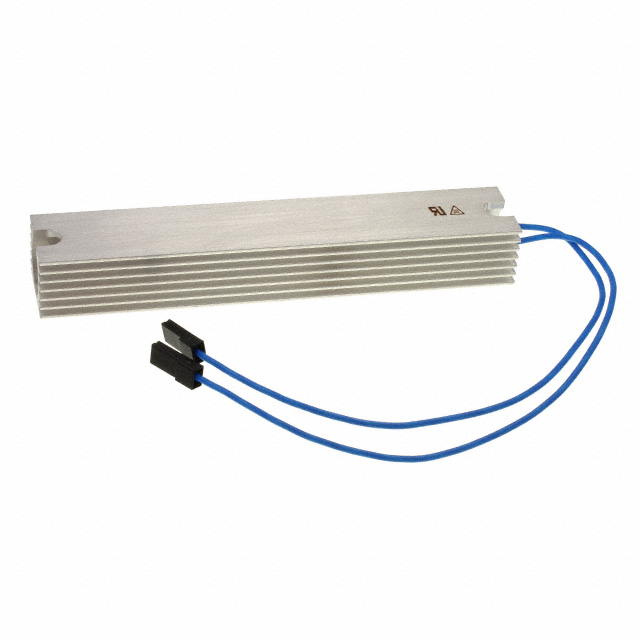

12 Ohms ±5% 400W Wirewound Chassis Mount Resistor

Technical documentation and resources

No documents available
