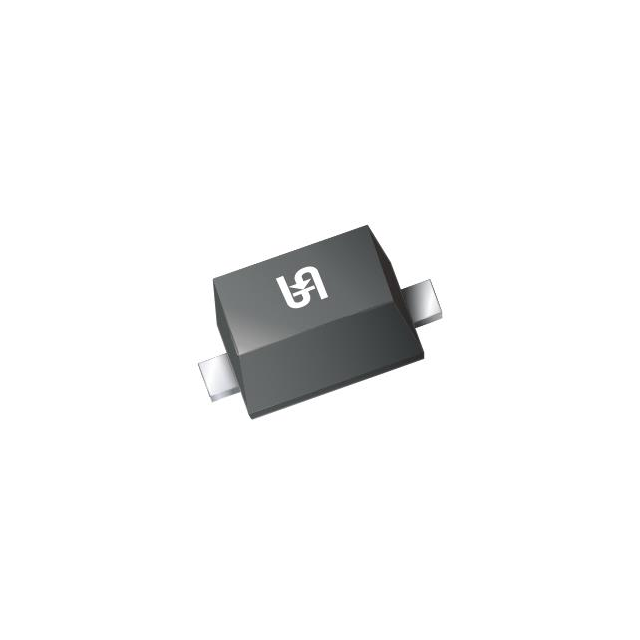

RB520G-30 RLG
ActiveTaiwan Semiconductor Corporation
DIODE SCHOTTKY 30V 100MA SOD723
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RB520G-30 RLG
ActiveTaiwan Semiconductor Corporation
DIODE SCHOTTKY 30V 100MA SOD723
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RB520G-30 RLG |
|---|---|
| Current - Average Rectified (Io) | 100 mA |
| Current - Reverse Leakage @ Vr | 500 nA |
| Mounting Type | Surface Mount |
| Operating Temperature - Junction | 125 °C |
| Package / Case | SOD-723 |
| Speed | Any Speed |
| Speed | 200 mA |
| Supplier Device Package | SOD-723 |
| Technology | Schottky |
| Voltage - DC Reverse (Vr) (Max) [Max] | 30 V |
| Voltage - Forward (Vf) (Max) @ If | 450 mV |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.31 | |
| 10 | $ 0.19 | |||
| 100 | $ 0.12 | |||
| 500 | $ 0.09 | |||
| 1000 | $ 0.08 | |||
| 2000 | $ 0.07 | |||
| Digi-Reel® | 1 | $ 0.31 | ||
| 10 | $ 0.19 | |||
| 100 | $ 0.12 | |||
| 500 | $ 0.09 | |||
| 1000 | $ 0.08 | |||
| 2000 | $ 0.07 | |||
| Tape & Reel (TR) | 5000 | $ 0.06 | ||
| 10000 | $ 0.05 | |||
| 25000 | $ 0.05 | |||
| 50000 | $ 0.04 | |||
| 125000 | $ 0.04 | |||
Description
General part information
RB520 Series
Diode 30 V 100mA Surface Mount SOD-723
