T18-2VPDS-Q8
ActiveBANNER ENGINEERING
T18-2 SERIES: DIFFUSE SHORT RANG
T18-2VPDS-Q8
ActiveBANNER ENGINEERING
T18-2 SERIES: DIFFUSE SHORT RANG
Description
General part information
T18-2VPDS-Q8

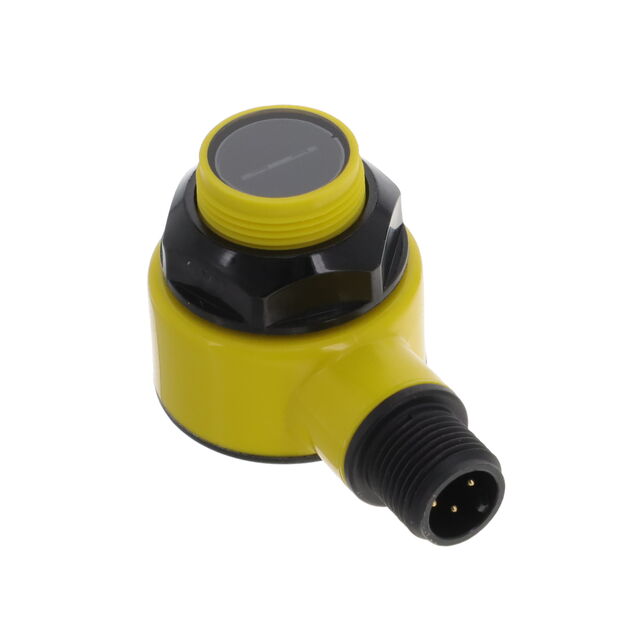

Diffuse Optical Sensor 11.811" (300mm) PNP - Dark-ON/Light-ON - Selectable
Technical Specifications
Parameters and characteristics for this part
| Specification | T18-2VPDS-Q8 |
|---|---|
| Adjustment Type | Adjustable, Potentiometer |
| Connection Method | Connector |
| Ingress Protection | IP68, IP67, IP69K |
| Light Source | Red |
| Light Source Wavelength (Red) | 624 nm |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -40 °C |
| Output Configuration | Light-ON - Selectable, Dark-ON, Selectable, Light-ON, PNP, PNP - Dark-ON |
| Response Time | 750 µs, 1.5 ms |
| Sensing Distance | 11.811 " |
| Sensing Method | Diffuse |
| Voltage - Supply (Maximum) | 30 VDC |
| Voltage - Supply (Minimum) | 10 VDC |
