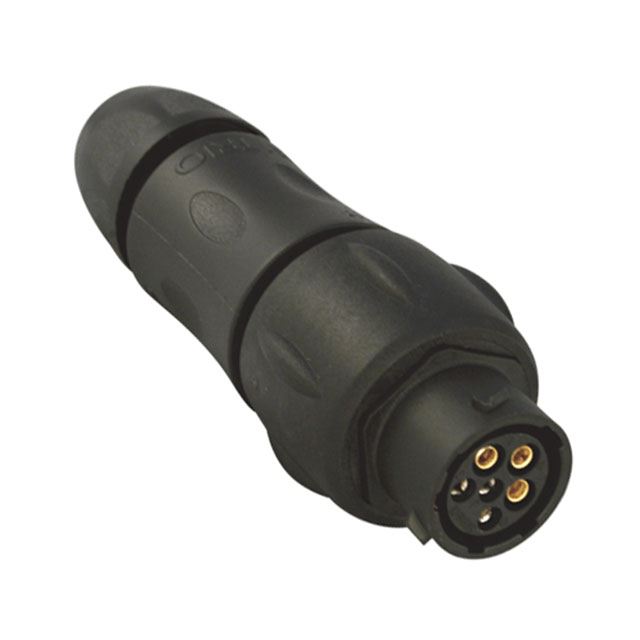

UTS1JC103W3S

Active

Souriau-Sunbank by Eaton

CONN RCPT HSG FMALE 6POS INLINE

Deep-Dive with AI

Search across all available documentation for this part.

UTS1JC103W3S

Active

Souriau-Sunbank by Eaton

CONN RCPT HSG FMALE 6POS INLINE

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	UTS1JC103W3S

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	20 (3), 16 (3)
Contact Type	Crimp
Fastening Type	Bayonet Lock
Features	Backshell
Housing Color	Black
Ingress Protection	IP68, IP69K
Insert Material	Nylon, Polyamide (PA)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	6
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	N
Shell Size - Insert	10-3W3
Shielding	Unshielded
Type	For Female Sockets

UTS1J Series

Part	Orientation	Type	Contact Type	Contact Size	Mounting Type	Ingress Protection	Material Flammability Rating	Shielding	Note	Number of Positions	Fastening Type	Connector Type	Insert Material	Features	Operating Temperature [Min]	Operating Temperature [Max]	Contact Shape	Shell Size - Insert	Housing Color	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Contact Size	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Number of Positions [custom]	Number of Positions [custom]
Souriau-Sunbank by Eaton UTS1JC104P	N	For Male Pins	Crimp	16	Free Hanging (In-Line)	IP68 IP69K	UL94 V-0	Unshielded	Contacts Not Included	4	Bayonet Lock	Receptacle Housing	Nylon Polyamide (PA)	Backshell	-40 °C	105 ░C	Circular	10-4	Black
Souriau-Sunbank by Eaton UTS1JC103S	N	For Female Sockets	Crimp	16	Free Hanging (In-Line)	IP68 IP69K	UL94 V-0	Unshielded	Contacts Not Included		Bayonet Lock	Receptacle Housing	Nylon Polyamide (PA)	Backshell	-40 °C	105 ░C	Circular	10-3	Black	2	3	1
Souriau-Sunbank by Eaton UTS1JC103W3P	N	For Male Pins	Crimp		Free Hanging (In-Line)	IP68 IP69K	UL94 V-0	Unshielded	Contacts Not Included	6	Bayonet Lock	Receptacle Housing	Nylon Polyamide (PA)	Backshell	-40 °C	105 ░C	Circular	10-3W3	Black				16 (3) 20 (3)
Souriau-Sunbank by Eaton UTS1JC147S	N	For Female Sockets	Crimp	16	Free Hanging (In-Line)	IP68 IP69K	UL94 V-0	Unshielded	Contacts Not Included		Bayonet Lock	Receptacle Housing	Nylon Polyamide (PA)	Backshell	-40 °C	105 ░C	Circular		Black					14	7	1	6
Souriau-Sunbank by Eaton UTS1JC148S	N	For Female Sockets	Crimp		Free Hanging (In-Line)	IP68 IP69K	UL94 V-0	Unshielded	Contacts Not Included	8	Bayonet Lock	Receptacle Housing	Nylon Polyamide (PA)	Backshell	-40 °C	105 ░C	Circular	14-8	Black				12 (4) 16 (4)
Souriau-Sunbank by Eaton UTS1JC1832S	N	For Female Sockets	Crimp	20	Free Hanging (In-Line)	IP68 IP69K	UL94 V-0	Unshielded	Contacts Not Included		Bayonet Lock	Receptacle Housing	Nylon Polyamide (PA)	Backshell	-40 °C	105 ░C	Circular		Black					32	18
Souriau-Sunbank by Eaton UTS1JC124S	N	For Female Sockets	Crimp	16	Free Hanging (In-Line)	IP68 IP69K	UL94 V-0	Unshielded	Contacts Not Included	4	Bayonet Lock	Receptacle Housing	Nylon Polyamide (PA)	Backshell	-40 °C	105 ░C	Circular	12-4	Black
Souriau-Sunbank by Eaton UTS1JC103P	N	For Male Pins	Crimp	16	Free Hanging (In-Line)	IP68 IP69K	UL94 V-0	Unshielded	Contacts Not Included		Bayonet Lock	Receptacle Housing	Nylon Polyamide (PA)	Backshell	-40 °C	105 ░C	Circular	10-3	Black	2	3	1
Souriau-Sunbank by Eaton UTS1JC1832P	N	For Male Pins	Crimp	20	Free Hanging (In-Line)	IP68 IP69K	UL94 V-0	Unshielded	Contacts Not Included		Bayonet Lock	Receptacle Housing	Nylon Polyamide (PA)	Backshell	-40 °C	105 ░C	Circular		Black					32	18
Souriau-Sunbank by Eaton UTS1JC147P	N	For Male Pins	Crimp	16	Free Hanging (In-Line)	IP68 IP69K	UL94 V-0	Unshielded	Contacts Not Included		Bayonet Lock	Receptacle Housing	Nylon Polyamide (PA)	Backshell	-40 °C	105 ░C	Circular		Black					14	7	1	6

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 15.24

Description

General part information

UTS1J Series

6 Position Circular Connector Receptacle Housing Free Hanging (In-Line) Backshell
