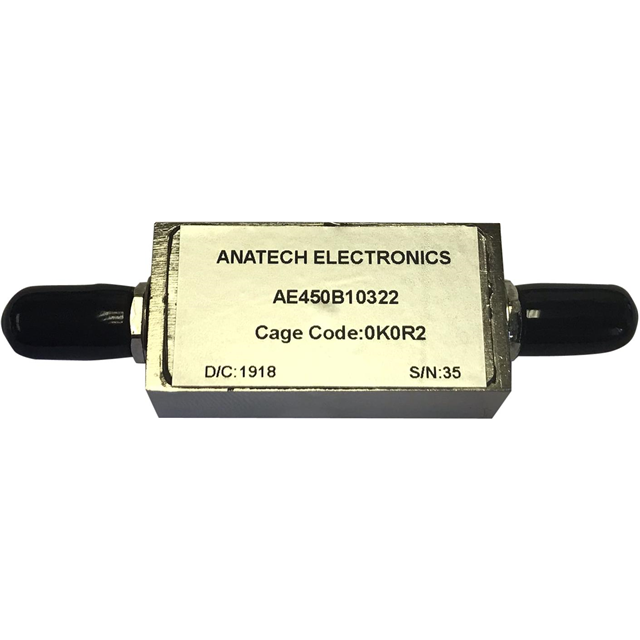

AE450B10322
ActiveAnatech Electronics Inc.
RF FILTER BANDPASS 450MHZ MODULE
AE450B10322
ActiveAnatech Electronics Inc.
RF FILTER BANDPASS 450MHZ MODULE
Description
General part information
AE450B10322
450MHz Center Frequency Band Pass RF Filter (Radio Frequency) 10MHz Bandwidth 1.5dB Module, SMA Connectors
Technical Specifications
Parameters and characteristics for this part
| Specification | AE450B10322 |
|---|---|
| Bandwidth | 10 MHz |
| Filter Type | Band Pass |
| Frequency (Center) | 450 MHz |
| Height (Max) | 12.7 mm |
| Insertion Loss | 1.5 dB |
| Mounting Type | Chassis Mount |
| Package / Case | Module, SMA Connectors |
| Size / Dimension Length | 1.5 in |
| Size / Dimension Width | 0.75 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
