2834339

Active

Phoenix Contact

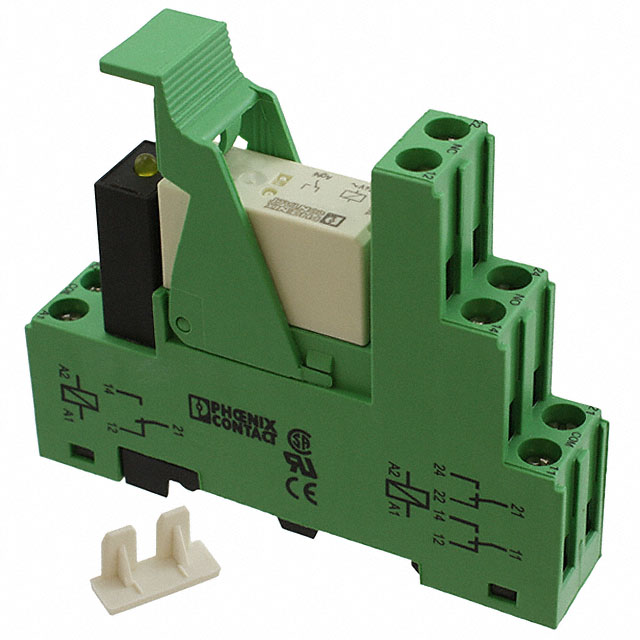

RELAY GEN PURPOSE SPDT 12A 24V

Search across all available documentation for this part.

Active

Phoenix Contact

RELAY GEN PURPOSE SPDT 12A 24V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

General Purpose Relay SPDT (1 Form C) 24VAC Coil DIN Rail

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	2834339	28343 Series

Approval Agency	-	VDE, UL, EAC, cULus
Coil Current	26 mA	5.5 - 26 mA
Coil Resistance	923 Ohms	17.1 - 1263 Ohms
Coil Type	Non Latching	Non Latching
Coil Voltage	24 VAC	24 - 230 VAC
Contact Form	SPDT (1 Form C)	SPDT (1 Form C), 4PDT (4 Form C)
Contact Material	Silver Nickel (AgNi)	Silver Nickel (AgNi), Gold (Au)
Contact Rating (Current)	12 A	5 - 12 A
Features	Lighted Indicator, Varistor, Socket Included	Lighted Indicator, Varistor, Socket Included, Diode, Test Button
Mounting Type	DIN Rail	DIN Rail, Socketable
Operate Time	12 ms	8 - 13 ms
Operating Temperature [Max]	60 °C	60 - 70 °C
Operating Temperature [Min]	-25 °C	-55 - -25 °C
Relay Type	General Purpose	General Purpose
Release Time	14 ms	5 - 22 ms
Switching Voltage	250 VAC, 250 VDC	250 VAC
Termination Style	Screw Terminal	Screw Terminal, Plug In

RELAY GEN PURPOSE SPDT 12A 24V

Part	Operating Temperature [Min]	Operating Temperature [Max]	Switching Voltage	Features	Coil Resistance	Coil Voltage	Contact Rating (Current)	Release Time	Mounting Type	Relay Type	Coil Type	Coil Current	Contact Material	Contact Form	Operate Time	Termination Style	Approval Agency
Phoenix Contact 2834339	-25 °C	60 °C	250 VAC, 250 VDC	Lighted Indicator, Socket Included, Varistor	923 Ohms	24 VAC	12 A	14 ms	DIN Rail	General Purpose	Non Latching	26 mA	Silver Nickel (AgNi)	SPDT (1 Form C)	12 ms	Screw Terminal
Phoenix Contact 2834313	-55 °C	70 °C	250 VAC, 250 VDC	Diode, Lighted Indicator, Test Button	17.38 kOhms	125 VDC	5 A	5 ms	Socketable	General Purpose	Non Latching	7.2 mA	Gold (Au), Silver Nickel (AgNi)	4PDT (4 Form C)	13 ms	Plug In	cULus, EAC, UL, VDE
Phoenix Contact 2834355	-25 °C	60 °C	250 VAC, 250 VDC	Lighted Indicator, Varistor	41.82 kOhms	230 VAC	12 A	22 ms	DIN Rail	General Purpose	Non Latching	5.5 mA	Silver Nickel (AgNi)	SPDT (1 Form C)	12 ms	Screw Terminal
Phoenix Contact 2834342	-25 °C	60 °C	250 VAC, 250 VDC	Lighted Indicator, Socket Included, Varistor	17.1 kOhms	120 VAC	12 A	16 ms	DIN Rail	General Purpose	Non Latching	7 mA	Silver Nickel (AgNi)	SPDT (1 Form C)	12 ms	Screw Terminal
Phoenix Contact 2834326	-25 °C	60 °C	250 VAC, 250 VDC	Diode, Lighted Indicator, Socket Included	1263 Ohms	24 VDC	12 A	10 ms	DIN Rail	General Purpose	Non Latching	19 mA	Silver Nickel (AgNi)	SPDT (1 Form C)	8 ms	Screw Terminal
