83900 0011000

Active

Belden Inc.

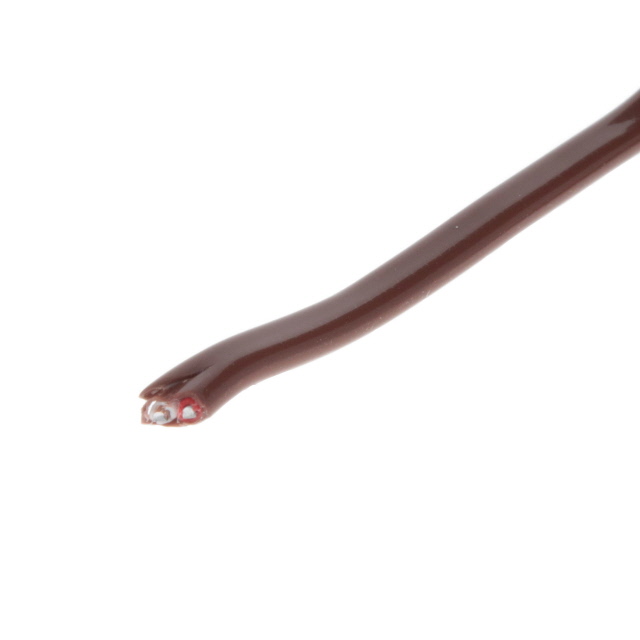

CABLE 2COND 20AWG BROWN

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 2COND 20AWG BROWN

Technical Specifications

Parameters and characteristics for this part

Specification	83900 0011000

Cable Type	Multi-Conductor
Conductor Insulation	Fluorinated Ethylene-Propylene (FEP)
Conductor Material	Constantan, Iron
Conductor Strand	Solid
Jacket (Insulation) Material	Fluorinated Ethylene-Propylene (FEP), Plenum
Jacket (Insulation) Thickness	0.012 in
Jacket (Insulation) Thickness	0.305 mm
Jacket Color	Brown
Length	1000 ft
Length	304.8 m
Number of Conductors	2
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-70 °C
Wire Gauge	20 AWG

Part	Conductor Strand	Number of Conductors	Cable Type	Length	Length	Conductor Insulation	Conductor Material	Jacket (Insulation) Material	Wire Gauge	Operating Temperature [Max]	Operating Temperature [Min]	Jacket Color	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness
Belden Inc. 83900 0011000	Solid	2	Multi-Conductor	1000 ft	304.8 m	Fluorinated Ethylene-Propylene (FEP)	Constantan Iron	Fluorinated Ethylene-Propylene (FEP) Plenum	20 AWG	200 °C	-70 °C	Brown	0.012 in	0.305 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 4.10

General part information

2 (1 Pair) Conductor Multi-Conductor Cable Brown 20 AWG 1000.0' (304.8m)
