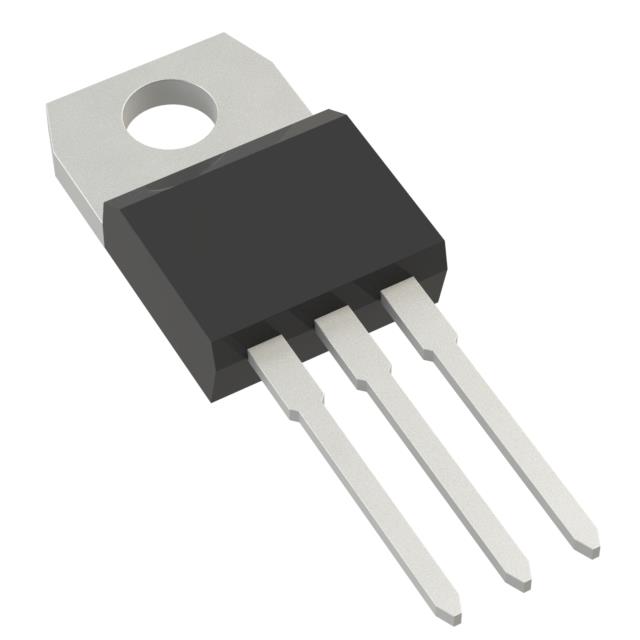

BTA04-600SRG

Active

STMicroelectronics

TRIAC SENS GATE 700V 4A TO220AB

Search across all available documentation for this part.

Active

STMicroelectronics

TRIAC SENS GATE 700V 4A TO220AB

Technical Specifications

Parameters and characteristics for this part

Specification	BTA04-600SRG

Configuration	Single
Current - Gate Trigger (Igt) (Max) [Max]	10 mA
Current - Hold (Ih) (Max) [Max]	25 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)	42 A, 40 A
Current - On State (It (RMS)) (Max) [Max]	4 A
Mounting Type	Through Hole
Operating Temperature [Max]	110 °C
Operating Temperature [Min]	-40 °C
Package / Case	TO-220-3
Supplier Device Package	TO-220AB Insulated
Triac Type	Logic - Sensitive Gate
Voltage - Gate Trigger (Vgt) (Max) [Max]	1.5 V
Voltage - Off State	700 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	2000	$ 0.60

TRIAC SENS GATE 700V 4A TO220AB

Part	Configuration	Triac Type	Current - Non Rep. Surge 50, 60Hz (Itsm)	Mounting Type	Package / Case	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Current - On State (It (RMS)) (Max) [Max]	Voltage - Gate Trigger (Vgt) (Max) [Max]	Voltage - Off State	Current - Hold (Ih) (Max) [Max]	Current - Gate Trigger (Igt) (Max) [Max]
STMicroelectronics BTA04-600SRG	Single	Logic - Sensitive Gate	40 A, 42 A	Through Hole	TO-220-3	TO-220AB Insulated	110 °C	-40 °C	4 A	1.5 V	700 V	25 mA	10 mA

General part information

TRIAC Logic - Sensitive Gate 700 V 4 A Through Hole TO-220AB Insulated

Technical documentation and resources

No documents available
