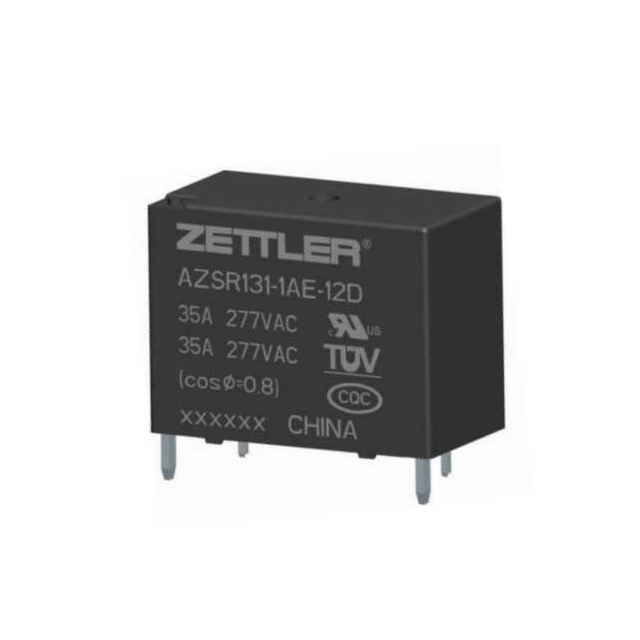

AZSR131-1AE-24D
ActiveAmerican Zettler
RELAY EV CHG SOLAR SPST 35A 24V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AZSR131-1AE-24D |
|---|---|
| Approval Agency | CQC, TUV, cURus |
| Coil Current | 58.5 mA |
| Coil Insulation | Class F |
| Coil Resistance | 410 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 24 VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Contact Rating (Current) | 35 A |
| Load - Max Switching | 9695 VA |
| Mounting Type | Through Hole |
| Must Operate Voltage | 16.8 VDC |
| Must Release Voltage | 2.4 VDC |
| Operate Time | 20 ms |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Relay Type | EV Charging, Solar |
| Release Time | 10 ms |
| Switching Voltage [Max] | 277 VAC |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 3.49 | |
| 10 | $ 3.27 | |||
| 25 | $ 2.91 | |||
| 50 | $ 2.76 | |||
| 100 | $ 2.62 | |||
| 250 | $ 2.33 | |||
| 450 | $ 2.18 | |||
| 950 | $ 2.04 | |||
| 4900 | $ 1.96 | |||
Description
General part information
AZSR131-1AE-24D
EV Charging, Solar Relay SPST-NO (1 Form A) 24VDC Coil Through Hole
