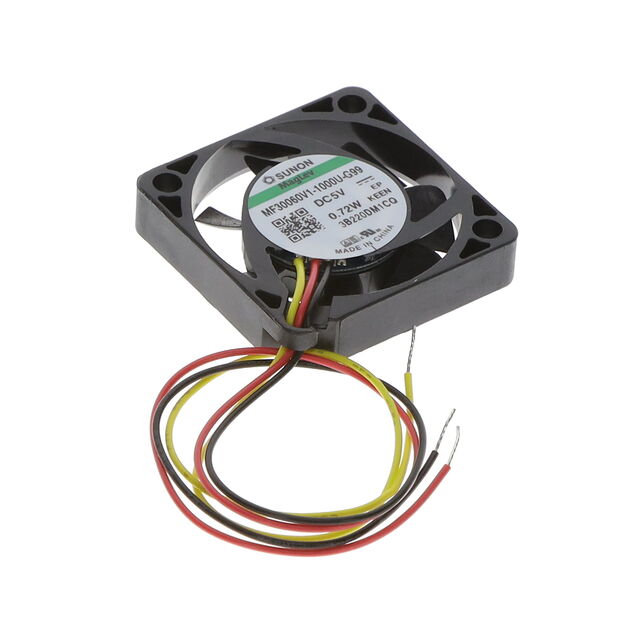

MF30060V1-1000U-G99
ActiveSunon Fans
FAN AXIAL 30X6.5MM 5VDC WIRE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MF30060V1-1000U-G99
ActiveSunon Fans
FAN AXIAL 30X6.5MM 5VDC WIRE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MF30060V1-1000U-G99 |
|---|---|
| Air Flow | 0.137 m³/min |
| Air Flow | 4.9 CFM |
| Approval Agency | cURus, TUV |
| Current Rating (Amps) | 112 mA |
| Fan Type | Tubeaxial |
| Features | Auto Restart, Speed Sensor (Tach) |
| Lifetime @ Temp. | 70000 Hrs |
| Material - Blade | Polybutylene Terephthalate (PBT) |
| Noise | 23.6 dB(A) |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -10 °C |
| Operating Temperature [Min] | -10 °C |
| Power (Watts) | 560 mW |
| RPM | 9100 RPM |
| Size / Dimension [x] | 30 mm |
| Size / Dimension [z] | 30 mm |
| Static Pressure | 42.3 Pa |
| Static Pressure | 0.17 in H2O |
| Termination | 3 Wire Leads |
| Voltage - Rated | 5 V |
| Voltage Range [Max] | 6 VDC |
| Voltage Range [Min] | 2.5 V |
| Weight | 15.88 g |
| Weight | 0.035 lb |
| Width [y] | 6.5 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 10.95 | |
| 10 | $ 10.45 | |||
| 25 | $ 9.83 | |||
| 50 | $ 9.46 | |||
| 100 | $ 8.71 | |||
| 250 | $ 8.15 | |||
| 500 | $ 8.03 | |||
Description
General part information
MF30060V1-1000U-G99
Fan Tubeaxial 5VDC Square - 30mm L x 30mm H Vapo-Bearing™ 4.9 CFM (0.137m³/min) 3 Wire Leads
