145656040003829+T

Active

KYOCERA AVX

5656 SERIES, FLOXY, 0.5MM PITCH,

Search across all available documentation for this part.

Active

KYOCERA AVX

5656 SERIES, FLOXY, 0.5MM PITCH,

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	145656040003829+T	145656 Series

Connector Type	Plug, Floating	Plug, Floating
Contact Finish	-	Gold
Features	Pick and Place, Board Guide, Solder Retention	Solder Retention, Board Guide, Pick and Place
Height Above Board [z]	0.287 in	0.287 in
Height Above Board [z]	7.3 mm	7.3 mm
Mated Stacking Heights	-	17 mm
Mated Stacking Heights [Max]	19 mm	19 mm
Mated Stacking Heights [Min]	17 mm	17 mm
Mounting Type	Surface Mount	Surface Mount
Number of Positions	40	40 - 60
Number of Rows	2	2
Pitch [x]	0.5 mm	0.5 mm
Pitch [x]	0.02 in	0.02 in

5656 SERIES, FLOXY, 0.5MM PITCH,

Part	Mated Stacking Heights [Min]	Mated Stacking Heights [Max]	Mounting Type	Height Above Board [z]	Height Above Board [z]	Connector Type	Number of Rows	Number of Positions	Features	Pitch [x]	Pitch [x]	Mated Stacking Heights [z]	Contact Finish
KYOCERA AVX 145656040001829+T	17 mm	19 mm	Surface Mount	0.287 in	7.3 mm	Floating, Plug	2	40	Board Guide, Solder Retention	0.5 mm	0.02 in
KYOCERA AVX 145656060001829+T			Surface Mount	0.287 in	7.3 mm	Floating, Plug	2	60	Board Guide, Solder Retention	0.5 mm	0.02 in	17 mm	Gold
KYOCERA AVX 145656040003829+T	17 mm	19 mm	Surface Mount	0.287 in	7.3 mm	Floating, Plug	2	40	Board Guide, Pick and Place, Solder Retention	0.5 mm	0.02 in
KYOCERA AVX 145656052002829+T			Surface Mount	0.287 in	7.3 mm	Floating, Plug	2	52	Board Guide, Solder Retention	0.5 mm	0.02 in	17 mm	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

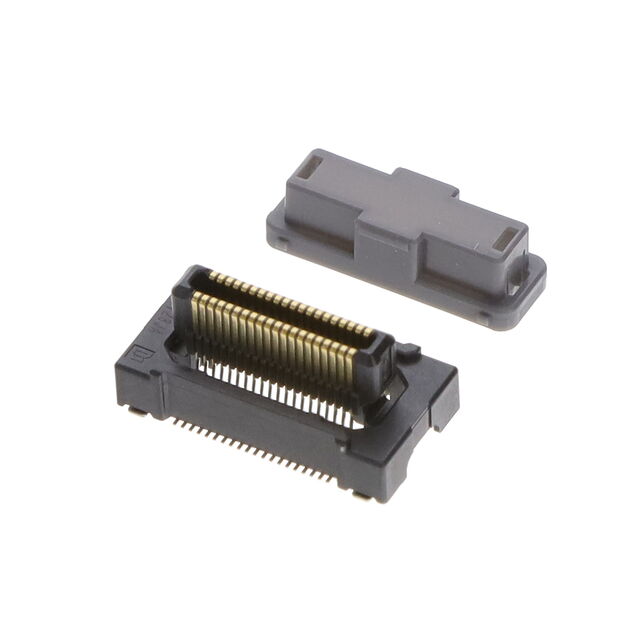

40 Position Connector Plug, Floating Surface Mount
