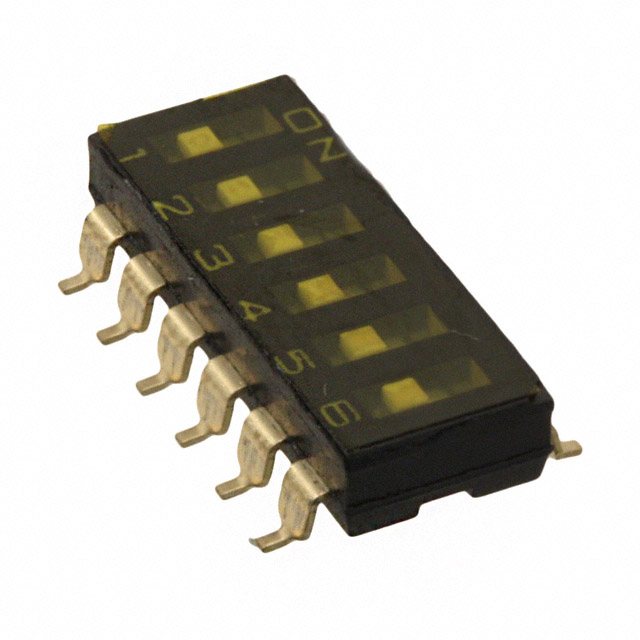

A6S-6102-H(VNM)

Active

Omron Electronics Inc-EMC Div

SWITCH SLIDE DIP SPST 0.025A 24V

Search across all available documentation for this part.

Active

Omron Electronics Inc-EMC Div

SWITCH SLIDE DIP SPST 0.025A 24V

Technical Specifications

Parameters and characteristics for this part

SWITCH SLIDE DIP SPST 0.025A 24V

Part	Contact Finish	Electrical Life	Number of Positions	Height Above Board	Height Above Board	Current Rating (Amps)	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Type	Length [x]	Length [x]	Circuit	Features	Mechanical Life	Termination Style	Washable	Mounting Type	Pitch [x]	Pitch	Pitch [x]	Actuator Level
Omron Electronics Inc-EMC Div A6S-6102-H(VNM)	Gold	1000 Cycles	6	3.7 mm	0.146 in	25 mA	24 VDC	-20 C	70 °C	Slide (Standard)	0.637 in	16.18 mm	SPST	Tape Seal	1000 Cycles	Gull Wing		Surface Mount	0.1 in	Full	2.54 mm	Flush, Recessed
