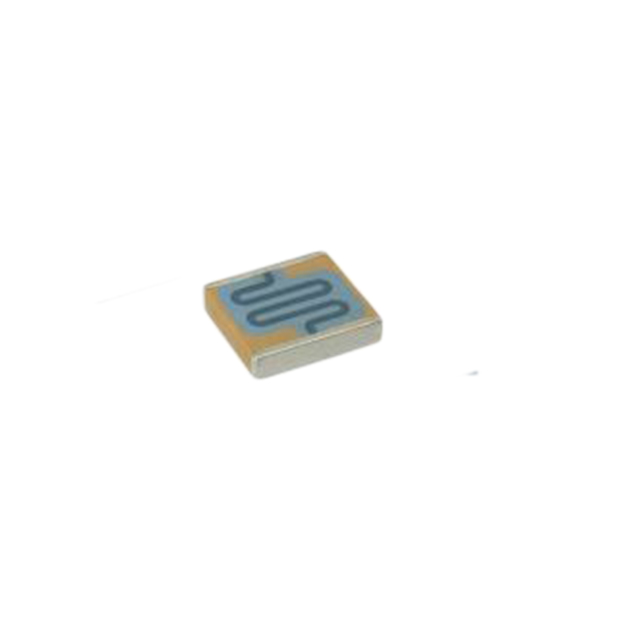

VJ3640Y684MXEAT

Active

Vishay General Semiconductor - Diodes Division

CAP CER 0.68UF 500V X7R 3640

Search across all available documentation for this part.

Active

Vishay General Semiconductor - Diodes Division

CAP CER 0.68UF 500V X7R 3640

Technical Specifications

Parameters and characteristics for this part

Part	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Thickness (Max) [Max]	Thickness (Max) [Max]	Package / Case	Package / Case	Capacitance	Voltage - Rated	Temperature Coefficient	Tolerance	Applications
Vishay General Semiconductor - Diodes Division VJ3640Y105KXCAT	10.2 mm	0.36 "	0.402 in	9.14 mm	MLCC Surface Mount	-55 °C	150 °C	2.18 mm	0.086 in	3640	9110 Metric	1 µF	200 V	X7R	10 %	General Purpose
Vishay General Semiconductor - Diodes Division VJ3640Y225KXBAT	10.2 mm	0.36 "	0.402 in	9.14 mm	MLCC Surface Mount	-55 °C	150 °C	2.18 mm	0.086 in	3640	9110 Metric	2.2 µF	100 V	X7R	10 %	General Purpose
Vishay General Semiconductor - Diodes Division VJ3640Y475MXAAT	10.2 mm	0.36 "	0.402 in	9.14 mm	MLCC Surface Mount	-55 °C	150 °C	2.18 mm	0.086 in	3640	9110 Metric	4.7 µF	50 VDC	X7R	20 %	General Purpose
Vishay General Semiconductor - Diodes Division VJ3640Y684MXEAT	10.2 mm	0.36 "	0.402 in	9.14 mm	MLCC Surface Mount	-55 °C	150 °C	2.18 mm	0.086 in	3640	9110 Metric	680 nF	500 V	X7R	20 %	General Purpose
Vishay General Semiconductor - Diodes Division VJ3640Y335KXBAT	10.2 mm	0.36 "	0.402 in	9.14 mm	MLCC Surface Mount	-55 °C	150 °C	2.18 mm	0.086 in	3640	9110 Metric	3.3 µF	100 V	X7R	10 %	General Purpose

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	1000	$ 6.00

General part information

0.68 µF ±20% 500V Ceramic Capacitor X7R 3640 (9110 Metric)
