OD5010-12MB

Active

Orion Fans

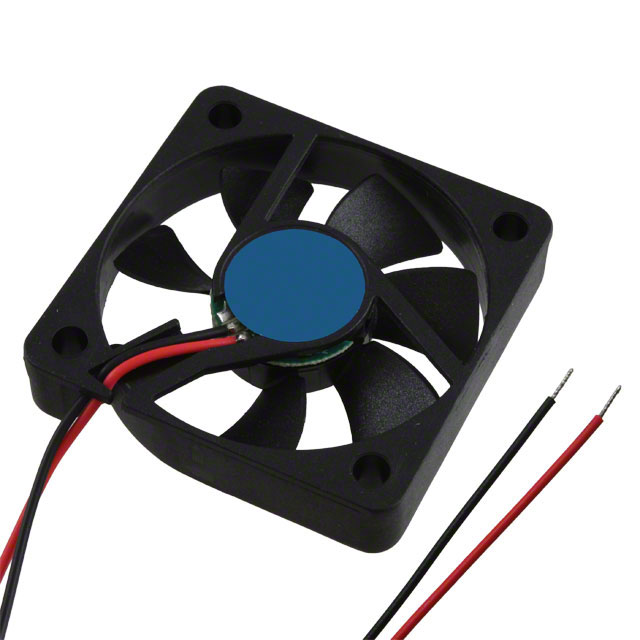

DC AXIAL FAN, 12 V, SQUARE, 50 MM, 10 MM, BALL BEARING, 10 CFM

Search across all available documentation for this part.

Active

Orion Fans

DC AXIAL FAN, 12 V, SQUARE, 50 MM, 10 MM, BALL BEARING, 10 CFM

Technical Specifications

Parameters and characteristics for this part

Specification	OD5010-12MB

Bearing Type	Ball
Current Rating (Amps)	0.09 A
Fan Type	Tubeaxial
Material - Blade	Polybutylene Terephthalate (PBT), Fiberglass Reinforced
Material - Frame	Polybutylene Terephthalate (PBT), Fiberglass Reinforced
Size / Dimension [x]	50 mm
Size / Dimension [z]	50 mm
Termination	2 Wire Leads
Voltage - Rated	12 VDC
Width [x]	10.5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	480	$ 8.85
Newark	Each	1	$ 13.38
		1000	$ 12.27

General part information

Fan Tubeaxial 12VDC Square - 50mm L x 50mm H Ball 2 Wire Leads
