Description
General part information
QS30VR3FF200

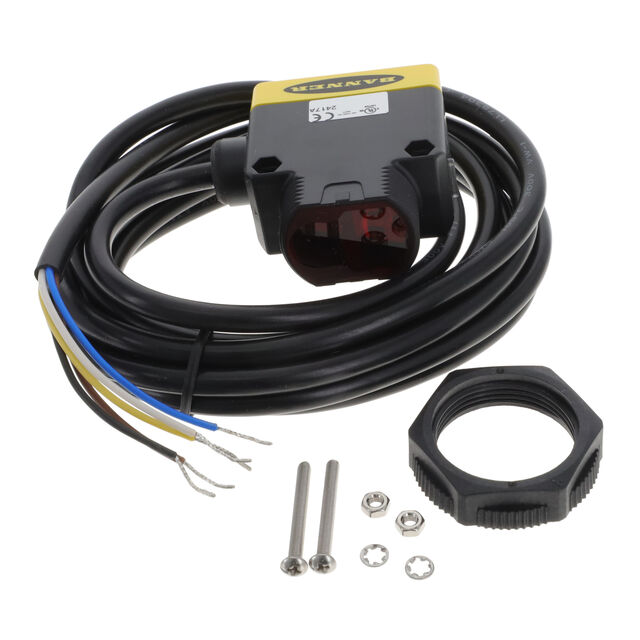

Fixed-Field Optical Sensor 7.874" (200mm) SPDT - Dark-ON/Light-ON
Technical Specifications
Parameters and characteristics for this part
| Specification | QS30VR3FF200 |
|---|---|
| Cable Length | 78.74 in |
| Connection Method | Cable |
| Ingress Protection | IP67, NEMA 6 |
| Light Source | Red |
| Light Source Wavelength (Red) | 680 nm |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -20 °C |
| Output Configuration | Light-ON, SPDT - Dark-ON |
| Response Time | 15 ms |
| Sensing Distance | 7.874 " |
| Sensing Method | Fixed-Field |
| Voltage - Supply (Range 1 Maximum) | 250 VAC |
| Voltage - Supply (Range 1 Minimum) | 24 VAC |
| Voltage - Supply (Range 2 Maximum) | 250 VDC |
| Voltage - Supply (Range 2 Minimum) | 12 VDC |
