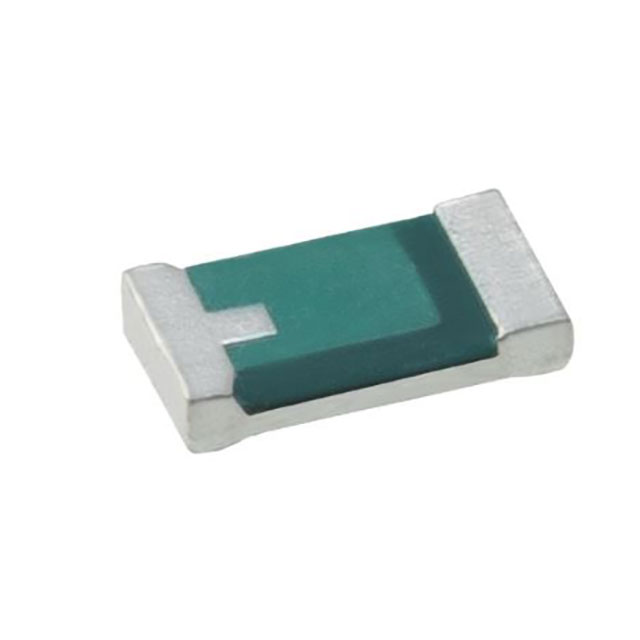

VMI-R050-5.0-U
ActiveIsabellenhuette USA
RES 0.05 OHM 5% 1/2W 0805
VMI-R050-5.0-U
ActiveIsabellenhuette USA
RES 0.05 OHM 5% 1/2W 0805
Description
General part information
VMI-R050-5.0-U
50 mOhms ±5% 0.5W, 1/2W Chip Resistor 0805 (2012 Metric) Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding
Technical Specifications
Parameters and characteristics for this part
| Specification | VMI-R050-5.0-U |
|---|---|
| Features | Moisture Resistant, Automotive AEC-Q200, Current Sense, Pulse Withstanding |
| Height - Seated (Max) | 0.022 in |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 170 °C |
| Operating Temperature (Min) | -65 °C |
| Package / Case | 0805 (2012 Metric) |
| Package Name | 0805 |
| Power (Watts) | 500 mW |
| Power (Watts) Options | 1/2W |
| Resistance | 0.05 Ohms |
| Size / Dimension Length | 0.08 in |
| Size / Dimension Width | 0.05 in |
| Temperature Coefficient | 30 ppm/¯C |
| Tolerance | 5 % |
