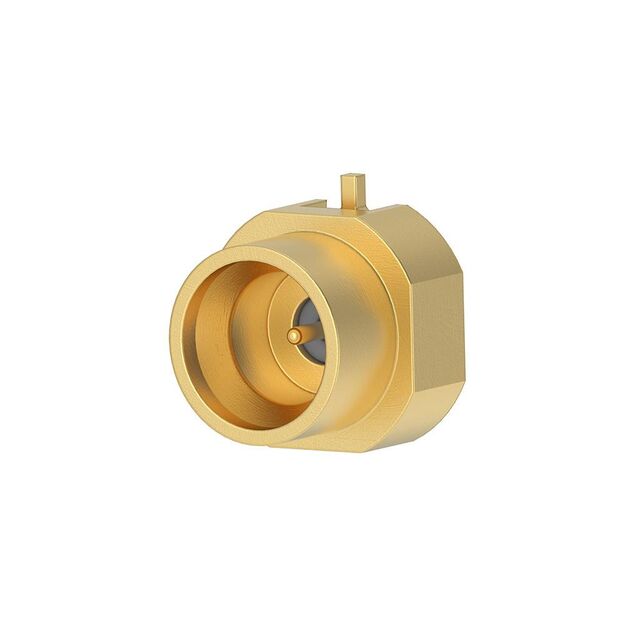

Specification	0734042150

Center Contact Material	Beryllium Copper
Connector Style	SMB
Connector Type	Plug, Female Socket
Contact Termination	Solder
Fastening Type	Snap-On
Frequency - Max	6000 MHz
Housing Color	Silver
Impedance	50 Ohm
Mounting Type	Through Hole, Right Angle
Number of Ports	1
Shield Termination	Solder

073404 Series

Part	Impedance	Connector Type	Mounting Type	Number of Ports	Shield Termination	Connector Style	Contact Termination	Cable Group	Fastening Type	Center Contact Material	Frequency - Max	Housing Color	Mating Cycles	Body Material	Dielectric Material	Insertion Loss	Operating Temperature (Max)	Operating Temperature (Min)	Body Finish	Center Contact Plating	Voltage Rating	Mounting Feature	Includes Total Count	Includes	Features
Molex 0734046320	50 Ohm	Female Socket Jack	Right Angle Through Hole	1	Solder	SMB	Solder
Molex 0734042320	50 Ohm	Female Socket Plug	Free Hanging (In-Line) Right Angle	1	Crimp	SMB	Solder	188 316 RG-174	Snap-On	Beryllium Copper	4 GHz	Gold	500 cycles	Brass	Polytetrafluoroethylene (PTFE)	0.2 dB	155 °C	-55 °C	Gold	Gold	335 V
Molex 0734042280	50 Ohm	Male Pin Receptacle	Right Angle Through Hole	1	Solder	SMB	Solder		Snap-On	Brass	4 GHz	Gold	500 cycles	Brass	Polytetrafluoroethylene (PTFE)	0.2 dB	155 °C	-55 °C	Gold	Gold	335 V
Molex 0734040200	75 Ohm	Male Pin Receptacle	Right Angle Surface Mount	1	Solder	SMB	Solder		Snap-On	Brass	4 GHz	Gold	500 cycles	Brass	Polytetrafluoroethylene (PTFE)	0.2 dB	155 °C	-55 °C	Gold	Gold	335 V
Molex 0734042330	75 Ohm	Male Pin Receptacle	Right Angle Through Hole	1	Solder	SMB	Solder		Snap-On	Brass	4 GHz	Gold	500 cycles	Brass	Polytetrafluoroethylene (PTFE)	0.2 dB	155 °C	-55 °C	Gold	Gold	335 V
Molex 0734048030		Female Socket Jack	Free Hanging (In-Line)	1		SMB		RG-316
Molex 0734041424
Molex 0734040140	75 Ohm	Male Pin Receptacle	Board Edge End Launch Panel Mount	1	Solder	SMB	Solder		Snap-On	Brass	4 GHz	Gold	500 cycles	Brass	Polytetrafluoroethylene (PTFE)	0.2 dB	155 °C	-55 °C	Gold	Gold	335 V	Bulkhead Front Side Nut	3 pcs	Connector Lockwasher Nut
Molex 0734046341	75 Ohm	Male Pin Plug	Through Hole	1	Solder	SMB	Solder
Molex 0734040573	50 Ohm	Jack Male Pin	Free Hanging (In-Line)	1	Crimp	Fakra SMB	Crimp	141 303 RG-58	Locking Ramp	Brass	6000 MHz	Bordeaux Violet	50 cycles	Brass Zinc	Polytetrafluoroethylene (PTFE)		105 °C	-40 °C	Nickel	Gold	335 V				Code D
