FC4UTCBAF12.0-BAG100
ObsoleteFox Electronics
CRYSTAL 12.0000MHZ SERIES TH
FC4UTCBAF12.0-BAG100
ObsoleteFox Electronics
CRYSTAL 12.0000MHZ SERIES TH
Description
General part information
FC4UTCBAF12.0-BAG100

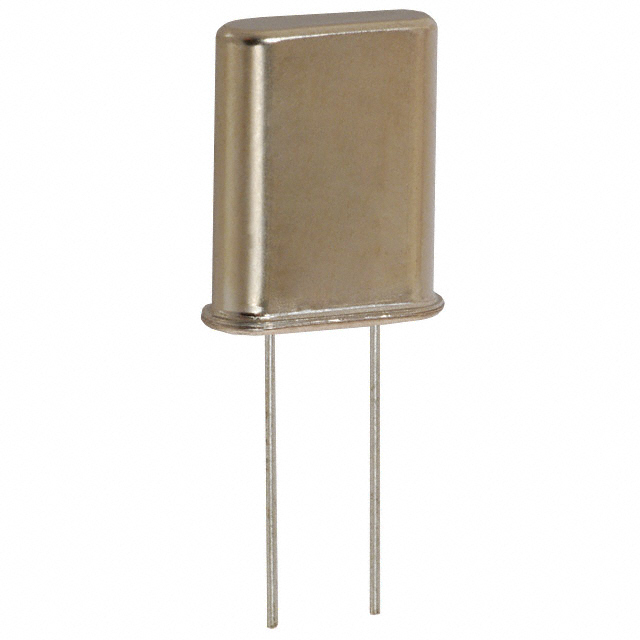

12 MHz ±30ppm Crystal Series 30 Ohms HC-49/U
Technical Specifications
Parameters and characteristics for this part
| Specification | FC4UTCBAF12.0-BAG100 |
|---|---|
| ESR (Equivalent Series Resistance) | 30 Ohm |
| Frequency | 12 MHz |
| Frequency Stability | 50 ppm |
| Frequency Tolerance | 30 ppm |
| Height - Seated (Max) | 0.53 in |
| Load Capacitance | Series |
| Mounting Type | Through Hole |
| Operating Mode | Fundamental |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -20 °C |
| Package / Case | HC-49/U |
| Size / Dimension Length | 0.435 in |
| Size / Dimension Width | 0.183 in |
| Type | MHz Crystal |
