Description
General part information

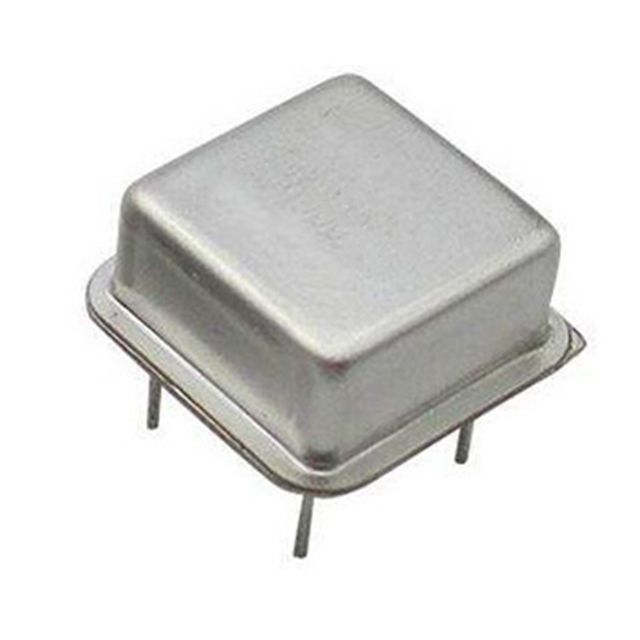

RB20M48000L001
20.48 MHz XO (Standard) TTL Oscillator 3.3V Enable/Disable 8-DIP, 4 Leads (Half Size)
Technical Specifications
Parameters and characteristics for this part
| Specification | RB20M48000L001 |
|---|---|
| Base Resonator | Crystal |
| Current - Supply (Max) | 20 mA, 30 mA |
| Frequency | 20.48 MHz |
| Frequency Stability | 50 ppm |
| Function | Enable, Disable |
| Height - Seated (Max) | 0.2 in, 0.208 in |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Output | TTL |
| Package Leads | 4 Leads |
| Package Name | 8-DIP |
| Size / Dimension Length | 0.52 in, 0.5 in |
| Size / Dimension Width | 0.52 in, 0.5 in |
| Type | XO (Standard) |
| Voltage - Supply | 3.3 V |
