Description

General part information

16UL3173STRBLA250

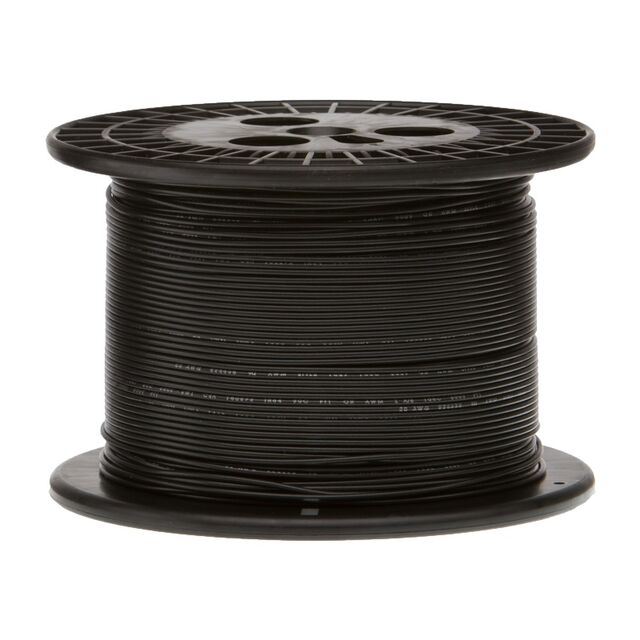

16 AWG Hook-Up Wire 26/30 Black 600V 250.0' (76.2m)

Technical Specifications

Parameters and characteristics for this part

Specification16UL3173STRBLA250
Cable TypeHook-Up
Conductor MaterialTinned, Copper
Conductor Strand Count26
Conductor Strand Gauge30 AWG
FeaturesCorrosion Resistant, Oil Resistant, Abrasion Resistant, Chemical Resistant, Solvent Resistant
Jacket (Insulation) Diameter0.121 in
Jacket (Insulation) MaterialPolyethylene (XLPE)
Jacket (Insulation) Thickness0.03 in
Jacket ColorBlack
Length250 ft
Operating Temperature125 °C
Ratings3173, Style, UL
Voltage600 V
Wire Gauge16 AWG
